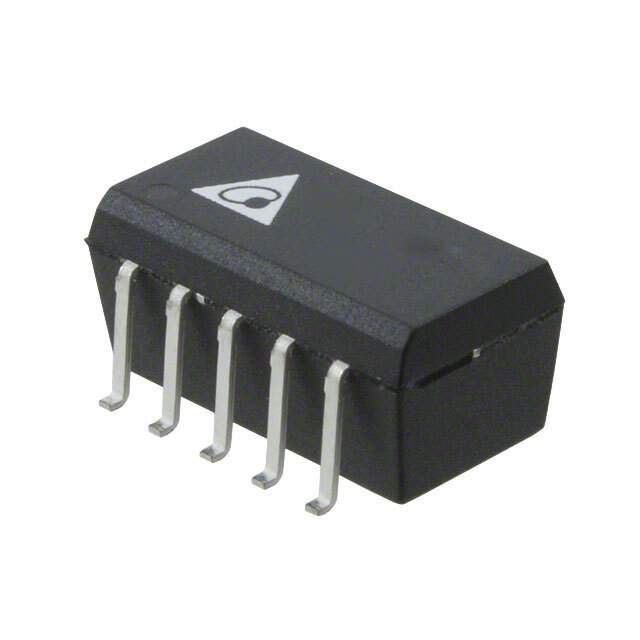

SA01D2409A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Delta Electronics
Series SA01D (1W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Current - Output (Max) 55mA, 55mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications Medical
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 75%
Mounting SMD (SMT)
Package / Case 8-SMD Module
Dimension 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
Base Product Number SA01D
Other Names 941-1259
Standard Package 10
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1237511-SA01D2409A
Ultra Librarian 3D Model Ultra Librarian SA01D2409A CAD Model

Description

{"Intro":"

The Delta Electronics SA01D2409A is a DC DC converter power supply suitable for medical applications.

","Specifications":"
  • Type: Isolated Module
  • Features: SCP
  • Power: 1W
  • Number of Outputs: 2
  • Voltage Output: 9V and -9V
  • Voltage Isolation: 1 kV
  • Number of Outputs: 2
  • Voltage Input Range: 21.6V to 26.4V
  • Current Output: 55mA
  • Current Output: 55mA
  • Mounting: SMD (SMT)
  • Package: Tube
  • Efficiency: 75%
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • REACH: Unaffected
"}
