Same model may have multiple batches, images only for reference.

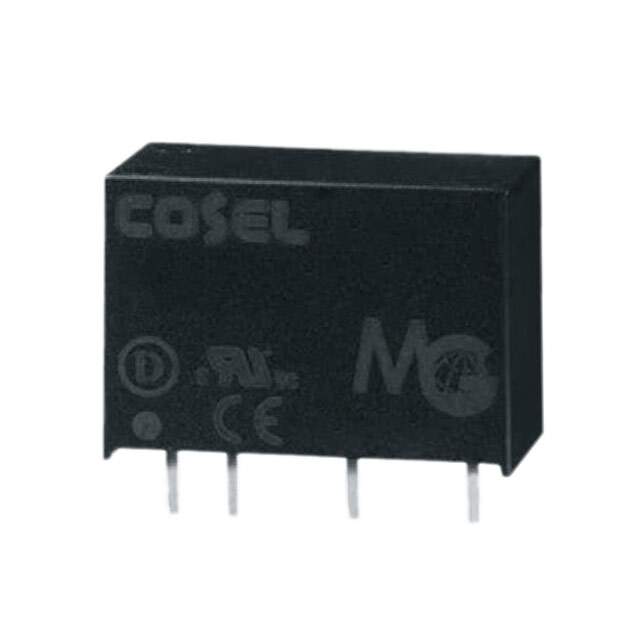

MGFS34812 Real Image
Same model may have multiple batches, images only for reference.

MGFS34812

Part No MGFS34812
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 3W / Isolated Module DC DC Converter 1 Output 12V 250mA 18V - 76V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGFS (3W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 76V
Voltage - Output 1 12V
Current - Output (Max) 250mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 83%
Mounting Type Through Hole
Package / Case 4-SIP Module
Size / Dimension 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm)
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1340461-MGFS34812
Ultra Librarian 3D Model Ultra Librarian MGFS34812 CAD Model

Description

The Cosel USA, Inc. MGFS34812 is a 3W isolated module DC-DC converter that comes with an OCP feature. MGFS34812 is manufactured by Cosel USA, Inc.

  • Power: 3W
  • Series: MGFS (3W)
  • Application: ITE (Commercial)
  • Voltage Isolation: 1.5 kV
  • Output: Single Output, 12V @ 250mA (Maximum)
  • Input Voltage: 18V to 76V
  • Efficiency: 83%
  • Mounting Type: Through-Hole
  • Package: 4-SIP Module
  • Operating Temperature: -40°C to 85°C (With Derating)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8504.40.9580
  • Standard Package: 1
