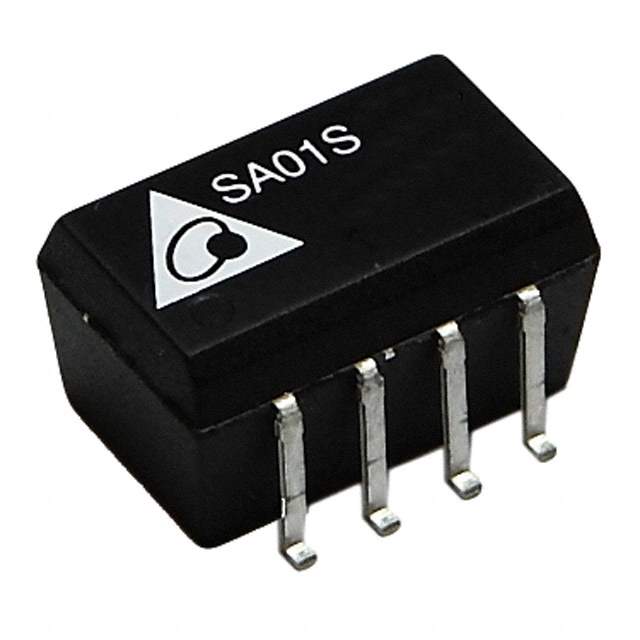

Same model may have multiple batches, images only for reference.

SA01S2405A

Name: SA01S2405A
Brand: Delta Electronics
SKU: 1237501
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SA01S2405A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 21.6V - 26.4V Input
Datasheet	SA01S2405A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SA01S (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	79%
Mounting	SMD (SMT)
Package / Case	8-SMD Module
Dimension	0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
Base Product Number	SA01S
Other Names	941-1246
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237501-SA01S2405A
Ultra Librarian 3D Model	Ultra Librarian SA01S2405A CAD Model

Alternative Products

Description

The SA01S2405A is a 1W isolated module DC-DC converter from Delta Electronics.

Package: 8-SMD module package
Voltage Isolation: 1 kV
Outputs: single output
Maximum Output Current: 200mA
Input Voltage Range: from 21.6V to 26.4V
Output Voltage: fixed @ 5V
Designed for: medical applications
Standard Package: 10
Efficiency: 79%
Operating Temperature Range: -40°C to 85°C
Dimensions: 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
Features: SCP (Short Circuit Protection)
