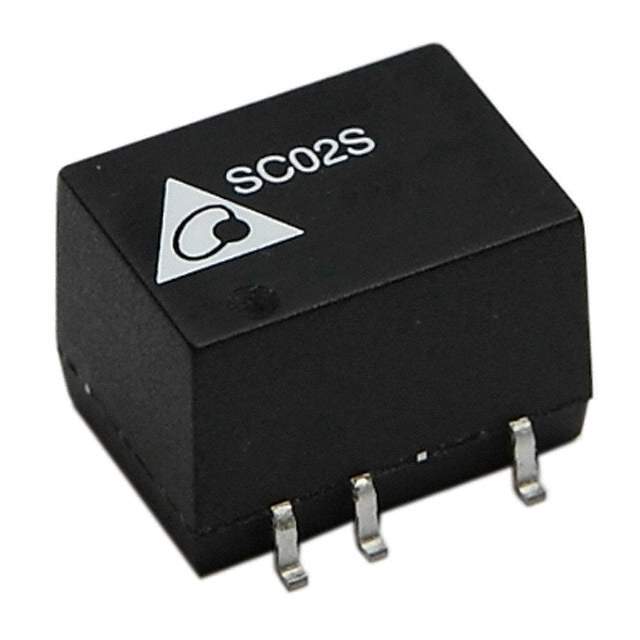

Same model may have multiple batches, images only for reference.

SC02S1212A

Get a Quote

Part No	SC02S1212A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 2W / Isolated Module DC DC Converter 1 Output 12V 165mA 10.8V - 13.2V Input
Datasheet	SC02S1212A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SC02S/D (2W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	12V
Current - Output (Max)	165mA
Power (Watts)	2 W
Voltage - Isolation	1 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	82%
Mounting	SMD (SMT)
Package / Case	8-SMD Module, 5 Leads
Dimension	0.50" L x 0.37" W x 0.35" H (12.8mm x 9.3mm x 9.0mm)
Base Product Number	SC02S
Other Names	941-1303
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237480-SC02S1212A
Ultra Librarian 3D Model	Ultra Librarian SC02S1212A CAD Model

Alternative Products

Description

The Delta Electronics 1237480-SC02S1212A is an isolated module DC-DC converter with a power rating of 2W.

Features: SCP
Voltage Isolation: 1kV
Outputs: single output
Maximum Output Current: 165mA
Output Voltage: 12V
Input Voltage Range: between 10.8V and 13.2V
Package: 8-SMD module with 5 leads
Suitable for: medical applications
Operating Temperature Range: between -40°C and 85°C
Product: REACH unaffected
ECCN: EAR99
