Same model may have multiple batches, images only for reference.

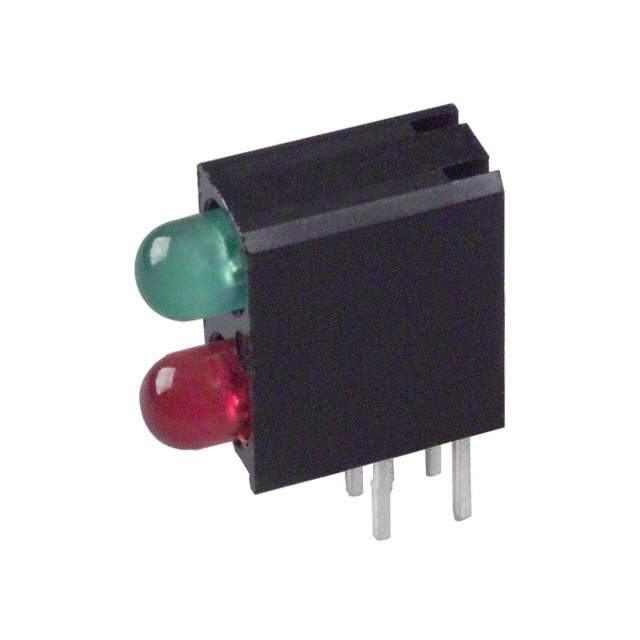

5530121F Real Image
Same model may have multiple batches, images only for reference.

5530121F

Part No 5530121F
Manufacturer Dialight
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 2HI 3MM GREEN OVER RED PCMNT  /  LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 1), Red (x 1) Diffused, Tinted 2.1V Green, 2V Red 10mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Datasheet
5530121F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 1238259-5530121F
HTSUS 8541.41.0000
ECCN EAR99
REACH Status REACH Unaffected
MSL Level 1 (Unlimited)
Standard Package 50
Other Names 553-0121F,350-1822
Base Product Number 5530121
Mounting Type Through Hole, Right Angle
Voltage Rating 2.1V Green, 2V Red
Lens Size 3mm, T-1
Lens Style Round with Domed Top
Lens Type Diffused, Tinted
Millicandela Rating 16mcd Green, 10mcd Red
Current 10mA
Configuration 2 High
Wavelength - Peak 563nm, 650nm
Color Green (x 1), Red (x 1)
Package Bulk
Series 553
Mfr Dialight
Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Ultra Librarian 3D Model Ultra Librarian 5530121F CAD Model

Description

The Dialight 1238259-5530121F is a through-hole LED with a diffused, tinted lens type and a millicandela rating of 16mcd for green and 10mcd for red.

  • Voltage Rating (Green): 2.1V
  • Voltage Rating (Red): 2V
  • Current: 10mA
  • Category: Optoelectronics
  • Popularity: Medium
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Supply and Demand: Balanced
