Same model may have multiple batches, images only for reference.

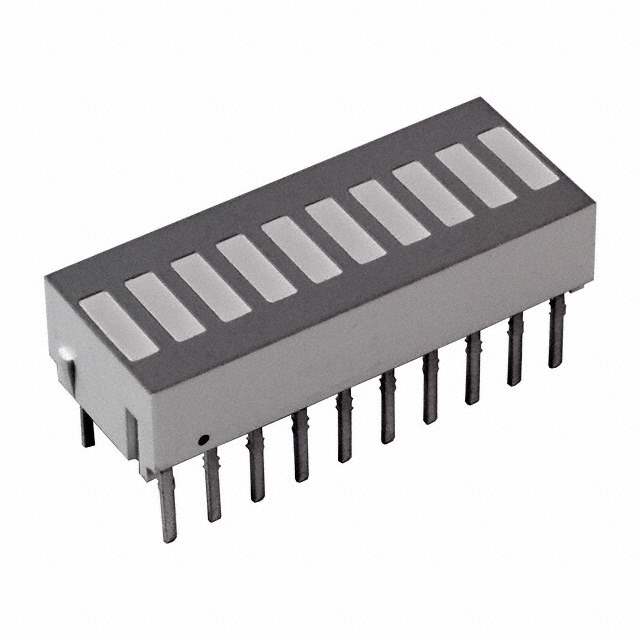

HDSP-4830 Real Image
Same model may have multiple batches, images only for reference.

HDSP-4830

Part No HDSP-4830
Manufacturer Broadcom Limited
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED BAR GRAPH 10SEG HE RED
Datasheet
HDSP-4830 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tube/Rail
Status Active
Color Red (x 10)
Wavelength - Peak 635nm
Configuration Bar - 10 Wide, DIP
Current 30mA
Millicandela Rating 3.5mcd
Lens Style/Size Rectangle with Flat Top, 5.08mm x 1.52mm
Voltage Rating 2.1V
Mounting Through Hole
Win Source Part Number 016914-HDSP-4830
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HDSP-4830 CAD Model

Description

The Broadcom Limited 016914-HDSP-4830 is a red LED bar with a diffused lens and a rectangular shape. It has a lens size of 5.08mm x 1.52mm and a millicandela rating of 3.5mcd. The forward voltage is 2.1V and the wavelength is peak at 635nm. The LED operates at a current of 30mA and is packaged in a tube/rail. The supply and demand status is limited and the package contains 10 pieces.
