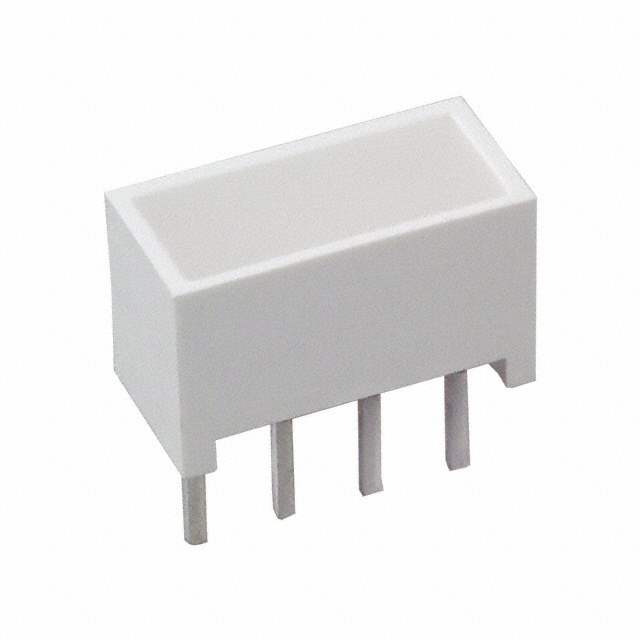

HLMP-2300 Real Image
Same model may have multiple batches, images only for reference.

HLMP-2300

Part No HLMP-2300
Manufacturer Broadcom Limited
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED LT BAR 8.89X3.81MM SGL HER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tube/Rail
Status Active
Color Red
Wavelength - Peak 634nm
Configuration Bar - Single, SIP
Current 30mA
Millicandela Rating 23mcd
Lens Style/Size Rectangle with Flat Top, 8.89mm x 3.81mm
Voltage Rating 2V
Mounting Through Hole
Win Source Part Number 016982-HLMP-2300
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Computers & Computer Peripherals, Consumer Electronics, Automation & Process Control, Communications & Networking, Industrial, Signalling
Quantity per package 320
Ultra Librarian 3D Model Ultra Librarian HLMP-2300 CAD Model

Description

The Broadcom Limited 016982-HLMP-2300 is an optoelectronic component with a red color and a voltage rating of 2V.

  • Mounting Configuration: Through-hole
  • Configuration: Bar - single, SIP
  • Millicandela Rating: 23mcd
