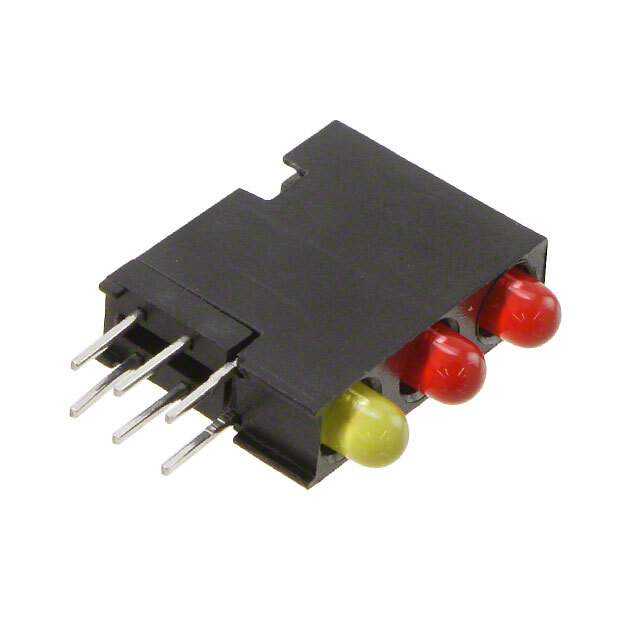

5640100113F Real Image
Same model may have multiple batches, images only for reference.

5640100113F

Part No 5640100113F
Manufacturer Dialight
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED CBI 3MM 3X1 RED/RED/YLW DIFF
Datasheet
5640100113F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Dialight
Series 564
Packaging Bulk
Color Red (x 2), Yellow (x 1)
Wavelength - Peak 635nm, 585nm
Configuration 3 High
Current 30mA Red, 20mA Yellow
Millicandela Rating 10mcd Red, 10mcd Yellow
Viewing Angle 60°
Lens Type Diffused
Lens Style/Size Round with Domed Top, 3mm (T-1)
Voltage Rating 2V Red, 2.1V Yellow
Mounting Through Hole, Right Angle
Win Source Part Number 760061-5640100113F
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5
Family Name 564-0100-113F
Introduction Date June 23, 1999
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 5640100113F CAD Model

Description

The Dialight 564-0100-113F is a series of optoelectronic components that is perfect for use in a wide range of applications.

  • Packaging: Bulk
  • Color: Red and Yellow
  • Voltage Rating (Red): 2V
  • Voltage Rating (Yellow): 2.1V
  • Viewing Angle: 60°
  • Millicandela Rating: 10mcd (Red and Yellow)
  • Lens Style/Size: Round with domed top, 3mm (T-1)
  • Wavelength Peak (Red): 635nm
  • Wavelength Peak (Yellow): 585nm
  • Current (Red): 30mA
  • Current (Yellow): 20mA
  • Lens Type: Diffused
  • Family Name: 564-0100-113F
  • Supply and Demand Status: Balanced
  • Quantity Per Package: 5
  • Halogen Free: Yes
