Same model may have multiple batches, images only for reference.

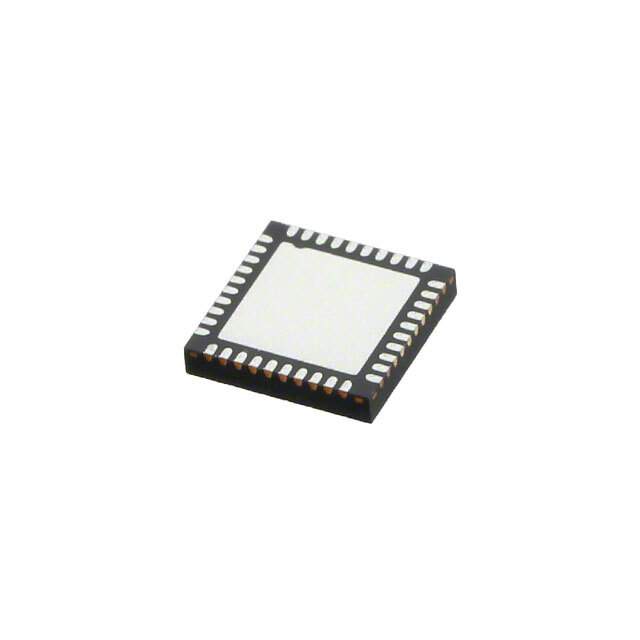

DA14581-00AT2 Real Image
Same model may have multiple batches, images only for reference.

DA14581-00AT2

Part No DA14581-00AT2
Manufacturer Dialog Semiconductor GmbH
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU BLUETOOTH 40VFQFN / Bluetooth Low Energy 4.2 SoC with Optimized Boot Time
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Dialog Semiconductor GmbH
Packaging Reel
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.1
Frequency 2.4GHz
Power - Output -1dBm
Sensitivity -93dBm
Memory Size 32kB OTP, 84kB ROM, 50kB SRAM
Serial Interfaces I2C, SPI, UART
GPIO 24
Supply Voltage (V) 2.35V ~ 3.3V
Current - Receiving 3.7mA
Current - Transmitting 3.4mA
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 40-VFQFN Exposed Pad
Supplier Device Package 40-QFN (5x5)
Manufacturer Pack Quantity 5,000
MSL Level 3 (168 Hours)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812651-DA14581-00AT2
Ultra Librarian 3D Model Ultra Librarian DA14581-00AT2 CAD Model

Description

The DA14581-00AT2 is a TxRx + MCU type electronic component manufactured by Dialog Semiconductor GmbH.

  • Win Source Part Number: 812651-DA14581-00AT2
  • Mounting Style: SMD
  • Frequency: 2.4GHz
  • Protocol: Bluetooth v4.1
  • Memory Size: 32kB OTP, 84kB ROM, 50kB SRAM
  • Power Output: -1dBm
  • Sensitivity: -93dBm
  • Receiving Current: 3.7mA
  • Transmitting Current: 3.4mA
  • GPIO: 24
  • Supplier Device Package: 40-QFN (5x5)
  • Operating Temperature: -40°C ~ 85°C
