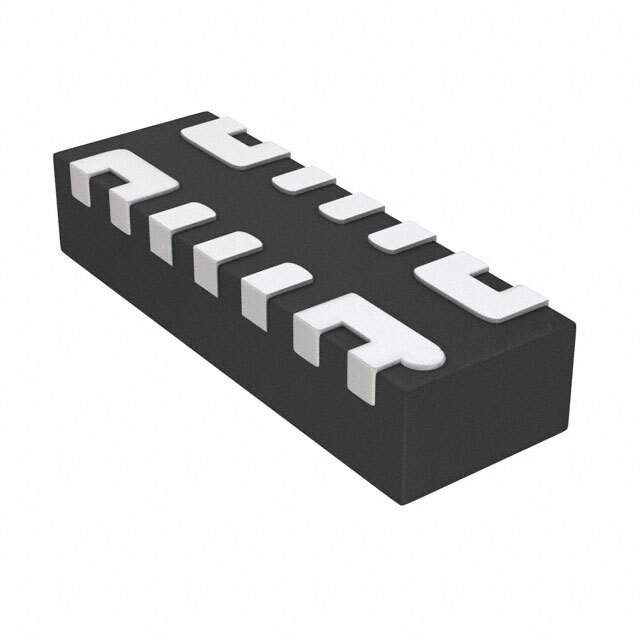

SLG59M1603V Real Image
Same model may have multiple batches, images only for reference.

SLG59M1603V

Part No SLG59M1603V
Manufacturer Dialog Semiconductor GmbH
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWITCH N-CHAN 1:1 14STDFN / Power Switch/Driver 1:1 N-Channel 4.5A 14-STDFN (1x3)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Power Distribution Switches, Load Drivers
Mfr Dialog Semiconductor GmbH
Package Tape & Reel
Switch Type General Purpose
Number of Outputs 2
Output Configuration High Side
Output Type N-Channel
Supply Voltage - Operating 2.5V ~ 5.5V
Current - Output (Max) 4.5A
Rds On (Typ) 16mOhm
Input Type CMOS
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Supplier Device Package 14-STDFN (1x3)
Package / Case 14-PowerUFDFN
Base Product Number SLG59
Other Names SLG59M1603VTR,1827-1084-2,1827-1084-1,1827-1084-6
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1253270-SLG59M1603V
Ultra Librarian 3D Model Ultra Librarian SLG59M1603V CAD Model

Description

The SLG59M1603V is an integrated circuit manufactured by Dialog Semiconductor GmbH.

  • Application: PMIC power distribution switch with load drivers
  • Package Type: Tape and reel
  • Standard Package: 3,000
  • Mounting: SMD (SMT)
  • Output Type: N-channel
  • Input Type: CMOS
  • Switch Type: General purpose
  • Outputs: 2
  • Current Output (max): 4.5A
  • Output Configuration: High side
  • Rds on (typ): 16mOhm
  • Package/Case: 14-PowerUFDFN
  • Supplier Device Package: 14-STDFN (1x3)
  • Temperature Range: -40°C to 85°C (TA)
  • Supply Voltage: 2.5V to 5.5V
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8542.39.0001
  • Base Product Number: SLG59
