Product Overview: 74LVC1G00FS3-7 from Diodes Incorporated

The 74LVC1G00FS3-7 is a high-performance, single 2-input NAND gate integrated circuit, meticulously designed by Diodes Incorporated to meet the needs of modern electronics. This compact and efficient logic gate is a fundamental component for a wide range of applications, from simple logic operations to complex computational systems.

Constructed with advanced silicon-gate CMOS technology, the 74LVC1G00FS3-7 offers a robust combination of high speed and low power consumption. It operates at a voltage range of 1.65V to 5.5V, making it versatile for use in various systems that require different power levels. This flexibility ensures compatibility with both 3.3V and 5V logic levels, enabling easy integration into mixed-voltage environments without the need for level shifters.

The device is characterized by its high noise immunity and low static power consumption. Even at high operating speeds, it maintains stability and precision, which is crucial for reliable system performance. The 74LVC1G00FS3-7 boasts a ±24mA output drive at 3.3V, providing a strong signal drive capability that is essential for driving heavier loads in complex circuits.

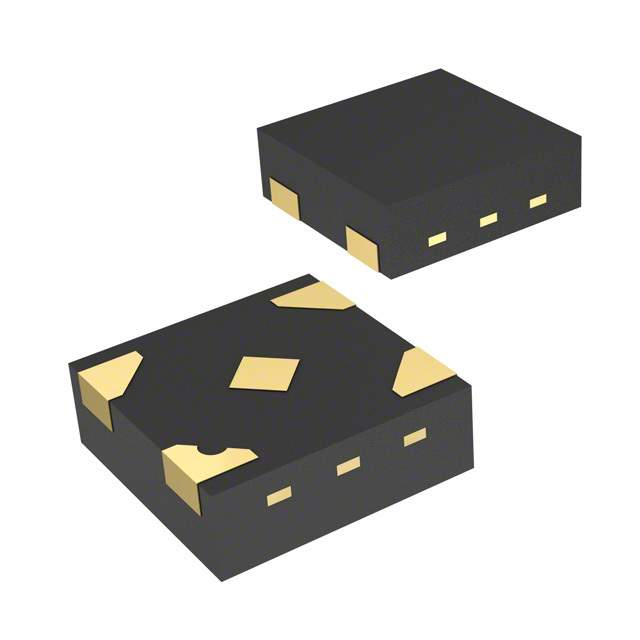

Encased in an ultra-small leadless package, the 74LVC1G00FS3-7 is designed to occupy minimal space on a PCB, making it an ideal choice for space-constrained applications such as portable devices, wearables, and embedded systems. Its small size does not compromise its functionality or performance, providing designers with a powerful tool for creating compact, yet powerful electronic designs.

Furthermore, the 74LVC1G00FS3-7 is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing damaging current backflow through the device when it is powered down. This feature is particularly useful for battery-powered applications where power conservation is critical.

In summary, the 74LVC1G00FS3-7 from Diodes Incorporated is a testament to the company's commitment to providing high-quality, reliable components for the electronics industry. With its high-speed performance, low power consumption, and compact design, this NAND gate is an excellent choice for designers looking to optimize their digital systems.
