Introducing the 74LVC2G06FZ4-7 Logic Inverter from Diodes Incorporated

The 74LVC2G06FZ4-7 is a high-performance, dual inverter with open-drain outputs designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This product is part of the 74LVC family, which is renowned for its low-voltage operation and compatibility with mixed-voltage system environments.

Key Features

• Advanced Technology: Built on an advanced CMOS technology, the 74LVC2G06FZ4-7 offers robust performance with low power consumption, making it suitable for battery-operated devices and energy-saving applications.
• Low Voltage Operation: This inverter operates at a supply voltage range of 1.65V to 5.5V, allowing for flexible use in various logic level interfaces and ensuring compatibility with both 3.3V and 5V systems.
• High-Speed: It delivers high-speed performance with a typical propagation delay of only 3.7ns at a supply voltage of 3.3V, ensuring swift signal processing for critical applications.
• Open-Drain Outputs: The open-drain configuration of the outputs enables wired-AND functions and is suitable for driving capacitive loads or creating level-shifters.
• ESD Protection: The device includes input and output over-voltage protection, providing a high Electrostatic Discharge (ESD) immunity which exceeds JESD 22, ensuring reliability and longevity in harsh environments.

Applications

The versatile nature of the 74LVC2G06FZ4-7 makes it an ideal choice for a wide array of applications, including:

• Logic level shifting for mixed-voltage systems
• Signal inversion in digital circuits
• Line driving with its open-drain outputs
• Power management circuits
• Portable and battery-powered devices

Package and Quality

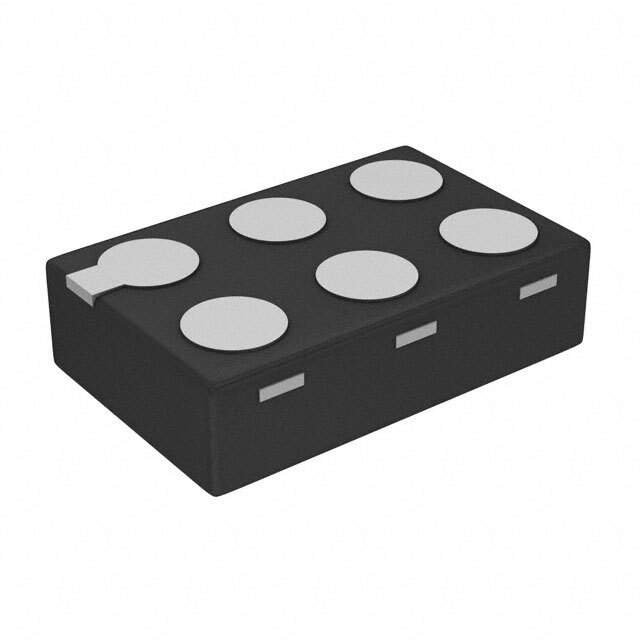

The 74LVC2G06FZ4-7 is offered in a compact DFN2020-6 (SOT1115) package, which is designed for space-saving on PCBs without compromising on thermal and electrical performance. Diodes Incorporated is committed to high-quality standards, and this product is no exception, meeting strict industry reliability benchmarks.

With its combination of low power consumption, high-speed operation, and ESD protection, the 74LVC2G06FZ4-7 from Diodes Incorporated is an excellent choice for designers looking to enhance the performance and reliability of their digital logic applications.
