The AH1807-Z-7 is a high-performance, micropower Omnipolar Hall Effect switch IC designed by Diodes Incorporated. This advanced sensor is engineered to detect the presence of a magnetic field and is characterized by its versatility and efficiency in a wide range of applications.

Key Features

• Omnipolar Operation: The AH1807-Z-7 can detect both North and South poles, making it highly flexible for various design configurations.
• Low Power Consumption: With a supply current as low as 24µA, it's an ideal choice for battery-powered and portable devices where power efficiency is critical.
• High Sensitivity: The device is sensitive to low magnetic fields, ensuring reliable switching even when magnets are weak or distant.
• Wide Operating Voltage Range: It operates within a voltage range of 2.5V to 5.5V, accommodating a broad spectrum of power supplies.
• Chopper-Stabilized Design: This feature provides stable operation over the full operating temperature range and minimizes the switch point drift.
• Robust Output: The open-drain output of the AH1807-Z-7 can directly drive loads or be connected to other circuits with minimal interfacing.

Applications

• Smart home devices
• Industrial automation
• Portable electronic devices
• Power tools
• Consumer electronics
• Position and speed sensing

Quality and Reliability

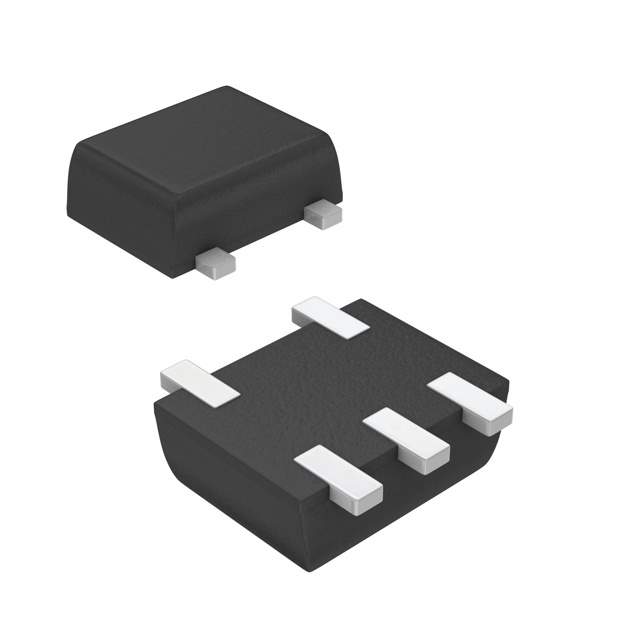

The AH1807-Z-7 is built with Diodes Incorporated's commitment to high-quality standards, ensuring reliability and performance consistency. It is packaged in a small and low-profile SOT553 package, making it suitable for space-constrained applications. Its robust design allows for operation in harsh environments, with an operating temperature range of -40°C to +85°C.

Ordering Information

The product is available with the ordering code AH1807-Z-7, and it's supplied in a "tape and reel" format to facilitate automated manufacturing processes. For detailed product specifications and ordering information, please refer to the Diodes Incorporated official website or contact their sales representatives.
