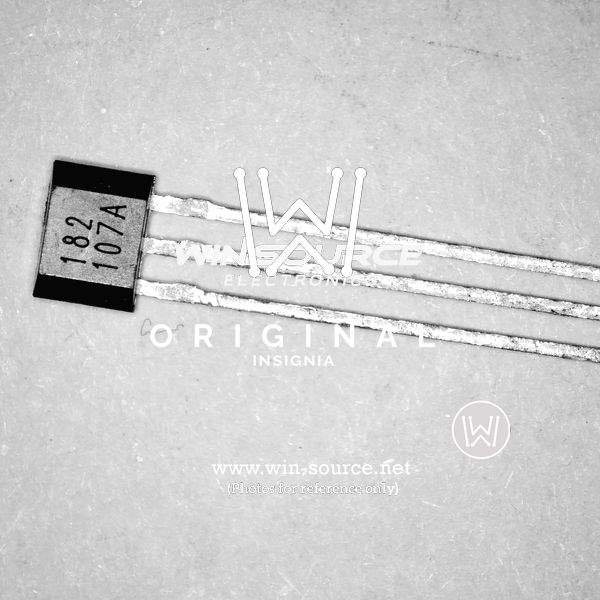

The AH182-PG-B is a high-performance, versatile Hall Effect latch IC designed by Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, analog, and mixed-signal semiconductor markets.

Key Features

• High Sensitivity: The device is capable of detecting magnetic fields with great precision, making it ideal for a wide range of applications.
• Wide Operating Voltage Range: It operates within a voltage range of 2.5V to 20V, allowing flexibility in various system designs.
• Chopper Stabilized Design: Ensures temperature stability and minimizes the switch-point drift, thus providing consistent performance.
• Open-Drain Output: The AH182-PG-B features an open-drain output that supports easy interfacing with other circuitry and provides the option for connecting multiple devices in parallel.

Applications

The AH182-PG-B is suited for a vast array of applications, including but not limited to:

• Position and speed sensing in motors and fan assemblies
• End of travel or rotation detection in mechanical systems
• Magnetic encoders for precise measurement of movement
• Contactless switches in consumer electronics and industrial equipment

Quality and Reliability

Diodes Incorporated is committed to delivering products that meet the highest standards of quality and reliability. The AH182-PG-B is produced in state-of-the-art facilities, ensuring it meets the rigorous requirements of industrial and consumer applications. It is also compliant with RoHS and Green standards, reflecting Diodes Incorporated's dedication to environmental sustainability.

Technical Specifications

Parameter Value Supply Voltage (V<sub>cc) 2.5V to 20V Output Type Open-Drain Sensing Range High Sensitivity Temperature Stability Chopper Stabilized Package Type PG-SC59-3 / SOT23-3

For detailed product information, technical specifications, and application support, please visit Diodes Incorporated's official website or contact their customer service team.
