The AH1883-ZG-7 is a high-performance, ultra-sensitive unipolar Hall-effect switch IC designed and manufactured by Diodes Incorporated. This compact and versatile sensor is engineered to detect magnetic fields with precision and reliability, making it an ideal component for a wide range of applications including industrial, consumer, and automotive products.

Key Features

• High Sensitivity: The AH1883-ZG-7 is capable of detecting very weak magnetic fields, which makes it suitable for applications requiring precise sensing capabilities.
• Unipolar Hall-Effect Switch: The device operates as a unipolar switch, which means it turns on in the presence of a sufficient south pole magnetic field and turns off when the field is removed.
• Low Power Consumption: Designed for energy efficiency, the AH1883-ZG-7 has a very low average current consumption, making it suitable for battery-powered applications.
• Highly Integrated: This IC incorporates a voltage regulator, Hall sensor with dynamic offset cancellation system, Schmitt trigger, and an open-drain output driver, all in one compact package.

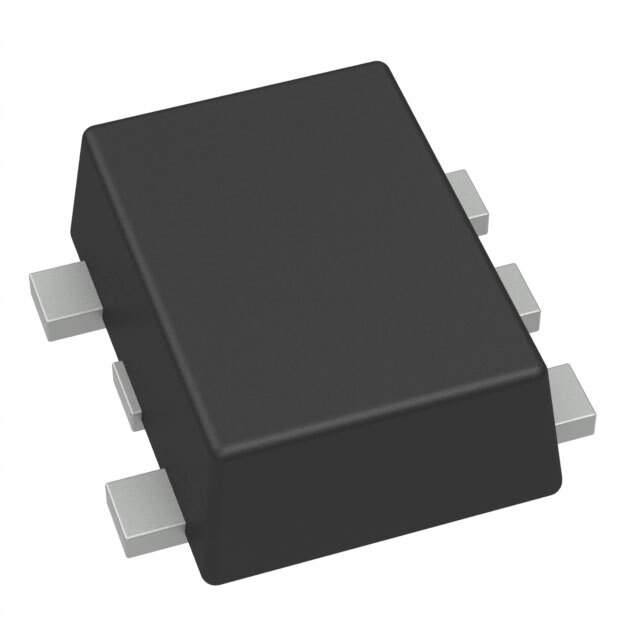

• Robust Package: The AH1883-ZG-7 is available in a small and thin package (SOT553), which is lead-free (RoHS compliant) and designed for space-constrained applications.

Applications

The versatility of the AH1883-ZG-7 allows it to be used in a variety of applications, such as:

• Portable and battery-powered devices
• Domestic appliances
• Industrial equipment
• Position and proximity sensing
• Open and close detection for smart home devices
• Flow meters

Technical Specifications

For more detailed information, please refer to the AH1883-ZG-7 datasheet provided by Diodes Incorporated.
