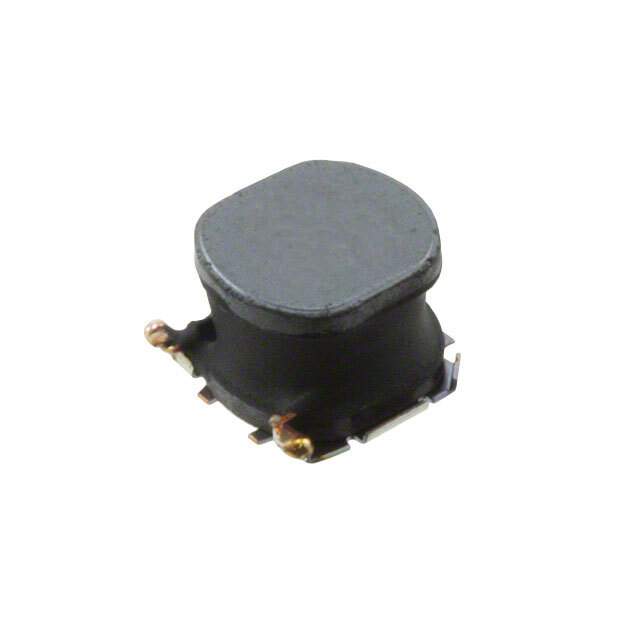

VLP6045LT-101M Real Image
Same model may have multiple batches, images only for reference.

VLP6045LT-101M

Part No VLP6045LT-101M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 100UH 800MA 663 MOHM / Inductor Power Shielded Wirewound 100uH 20% 100KHz Ferrite 0.8A 0.663Ohm DCR T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLP
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 100μH
Tolerance ±20%
Current Rating 800mA
Current - Saturation 900mA
Shielding Shielded
DC Resistance (DCR) 663 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Win Source Part Number 799110-VLP6045LT-101M
Popularity Medium
Supply and Demand Status Limited
Family Name VLP
Introduction Date May 20, 2002
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian VLP6045LT-101M CAD Model

Description

The VLP6045LT-101M is a wirewound inductor manufactured by TDK Corporation.

  • Series: VLP
  • Shielding: Shielded
  • Inductance: 100uH
  • Current Rating: 800mA
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 105°C
  • DC Resistance: 663 mOhm Max
  • Package: Nonstandard
  • Dimensions: 0.268" L x 0.268" W (6.80mm x 6.80mm)
  • Height: 0.177" (4.50mm)
  • Alternative parts: #646CY-101M, LQH6PPN101M43L, #A921CY-101M, SC63LCB-101
  • Supply and Demand: Limited
