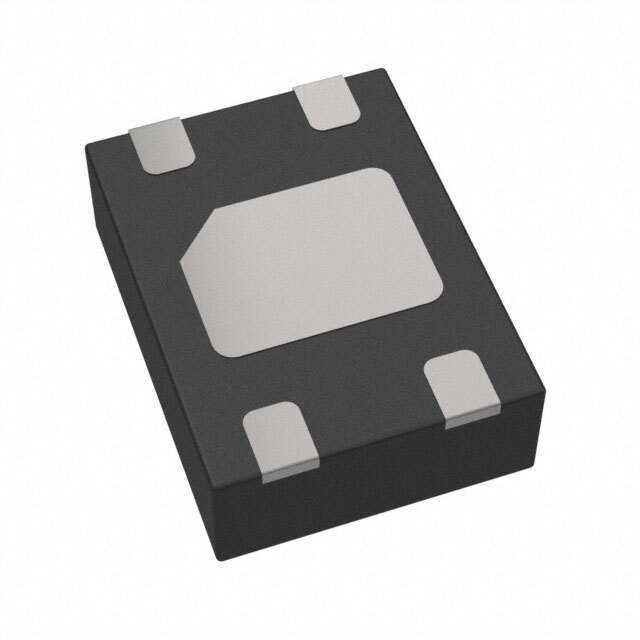

AH1913-FA-7

Part No AH1913-FA-7
Manufacturer Diodes Incorporated
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH OMNIPOLAR 4DFN / Digital Switch Omnipolar Switch Push-Pull Hall Effect X1-DFN1216-4
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Magnetic Sensors - Switches (Solid State)
Mfr Diodes Incorporated
Series -
Package Tape & Reel
Product Status Active
Function Omnipolar Switch
Technology Hall Effect
Polarization North Pole, South Pole
Sensing Range ±3mT Trip, ±2.4mT Release
Test Condition -40°C ~ 85°C
Voltage - Supply 1.6V ~ 5.5V
Current - Supply (Max) 22µA
Current - Output (Max) 1mA
Output Type Push-Pull
Features -
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Supplier Device Package X1-DFN1216-4
Package / Case 4-UDFN Exposed Pad
Base Product Number AH1913
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1356386-AH1913-FA-7
Ultra Librarian 3D Model Ultra Librarian AH1913-FA-7 CAD Model

Description

The AH1913-FA-7 is a high-performance micropower omnipolar Hall effect switch IC crafted by the renowned semiconductor manufacturer, Diodes Incorporated. This sophisticated sensor is designed to provide a versatile and efficient solution for detecting magnetic fields with precision and reliability.

Key Features

  • Sensitivity: The AH1913-FA-7 offers high sensitivity to magnetic fields, enabling it to detect both north and south poles with equal proficiency. This feature allows for more flexible product design and application.
  • Low Power Consumption: With micropower operation, this Hall effect switch is optimized for battery-powered and portable applications, ensuring minimal power drain and extended battery life.
  • Supply Voltage Range: The device operates over a wide supply voltage range from 1.6V to 3.6V, accommodating various power supply requirements and making it suitable for a broad array of electronic equipment.
  • Output Type: It features an open-drain output, providing the ability to interface with other components and logic levels easily.
  • Robust Design: The AH1913-FA-7 is built to be resilient, with high ESD (Electrostatic Discharge) immunity and a wide operating temperature range, making it ideal for challenging environmental conditions.
  • Package: Encased in a small and compact SOT553 package, it is ideal for space-constrained applications.
  • Lead-Free and RoHS Compliant: The device adheres to environmental standards, ensuring compliance with lead-free and RoHS directives.

Applications

The AH1913-FA-7 is engineered to meet the needs of a diverse range of applications, including but not limited to:

  • Portable and battery-powered devices
  • Smart home automation systems
  • Industrial sensors and controls
  • Consumer electronics
  • Power tools
  • White goods

Conclusion

Diodes Incorporated's AH1913-FA-7 Hall effect switch stands out with its high sensitivity, low power consumption, and robust design. It is a versatile component that can be integrated into a multitude of applications where reliable magnetic field detection is paramount. With its user-friendly features and compliance with environmental standards, the AH1913-FA-7 is an excellent choice for designers looking to enhance their products with advanced sensing capabilities.
