Diodes Incorporated AP1501T5 - Overview

The AP1501T5 is a high-performance, adjustable and fixed voltage regulator designed by Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, analog, and mixed-signal semiconductor markets. This component is particularly suited for a wide range of applications, including consumer electronics, industrial hardware, and telecommunications systems.

Key Features

• Output Voltage: The AP1501T5 provides an adjustable output voltage range from 1.23V to 37V, which allows for a high degree of flexibility in various applications. Additionally, fixed versions are available with standard output voltages, making it suitable for common voltage requirements.
• High Efficiency: With its ability to drive a 3A load without additional external transistors, the AP1501T5 offers high efficiency, which is crucial for maintaining thermal performance and energy savings in electronic devices.
• Thermal Overload Protection: The device includes a built-in thermal overload protection feature that shuts down the output when the junction temperature exceeds the safe operating limits, thereby protecting the device and the application from damage due to overheating.
• Current Limiting: A constant current limiting function is integrated into the AP1501T5, providing protection against short-circuit conditions and ensuring the longevity of the product and the safety of the end application.

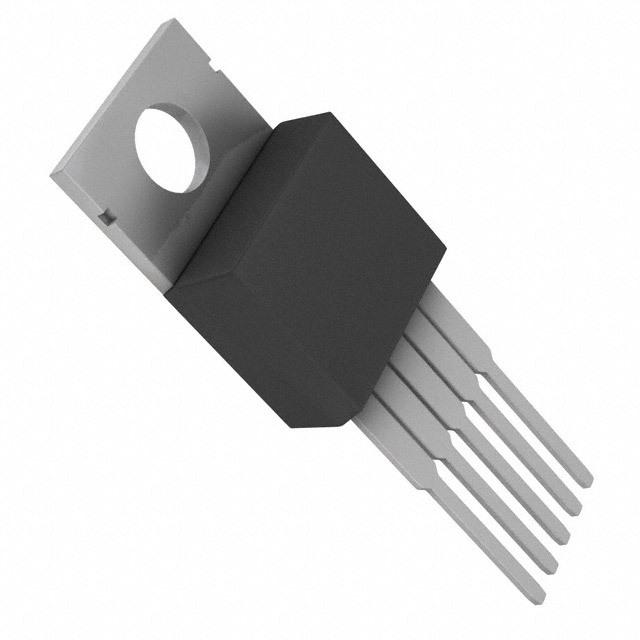

• Package Options: Available in a 5-lead TO-220 package, the AP1501T5 is designed for easy integration into various circuit board layouts, providing flexibility in design for hardware engineers.

Applications

The versatility of the AP1501T5 makes it an ideal choice for an array of applications, including:

• Power Supplies for Add-on Cards
• Battery Chargers
• Graphic Cards
• Pre-Regulator for Linear Regulators
• Switching Regulators for Peripheral Ports

Summary

In conclusion, the AP1501T5 from Diodes Incorporated is a robust, versatile voltage regulator that combines efficiency, reliability, and ease of use in a cost-effective package. Its comprehensive feature set, including adjustable output voltage, high efficiency, thermal overload protection, and current limiting, makes it a top choice for designers looking to enhance the performance and safety of their power management systems.
