Introducing the AP22653W6-7 Power Switch from Diodes Incorporated

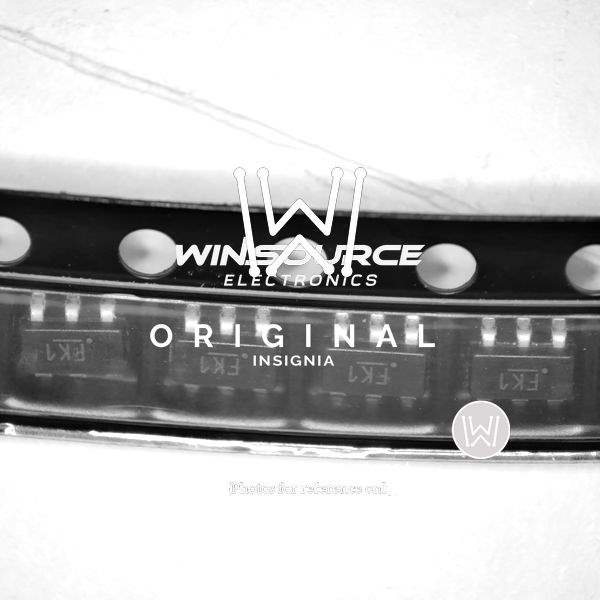

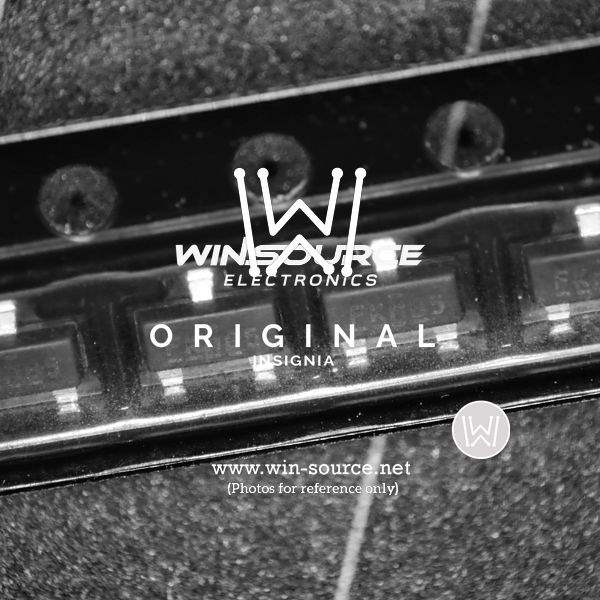

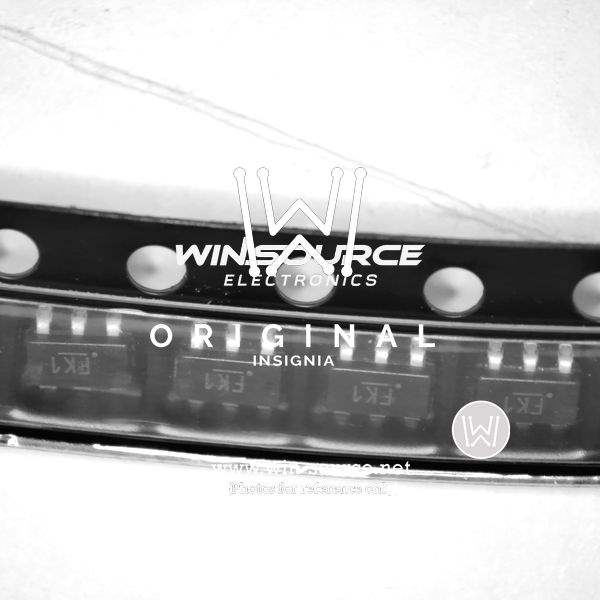

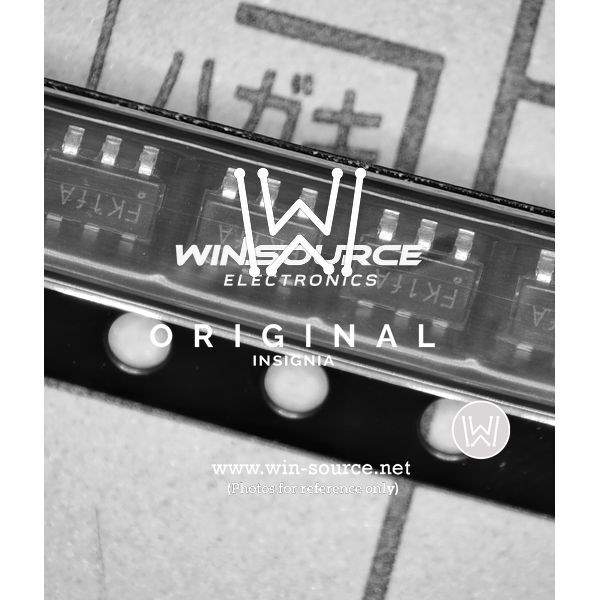

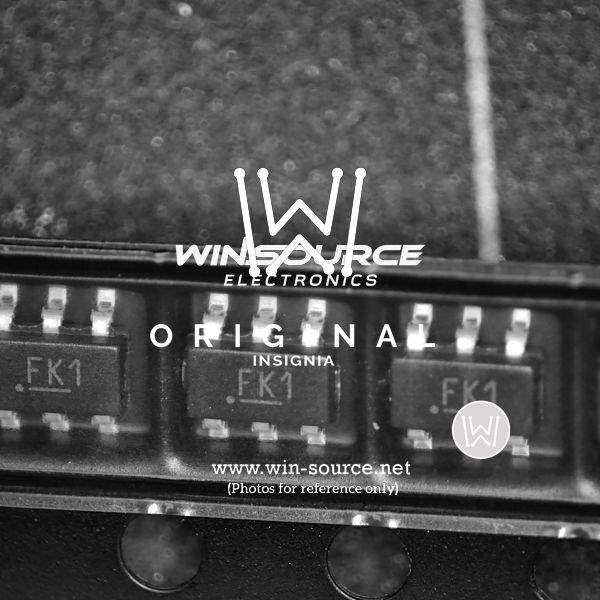

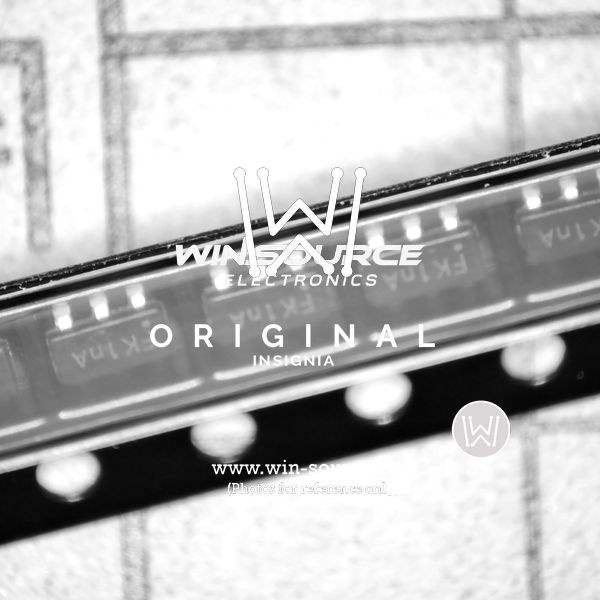

The AP22653W6-7 is a state-of-the-art single channel current-limited integrated high-side power switch, designed and manufactured by Diodes Incorporated. This advanced component is engineered for universal serial bus (USB) and other hot-swap applications. The AP22653W6-7 is housed in a compact SOT-26 package, making it ideal for space-constrained applications where a small footprint is essential.

This power switch is capable of operating at an input voltage range of 2.7V to 5.5V, which makes it versatile for various low voltage applications. It is specifically tailored to provide over-current protection for systems that require a highly-reliable power distribution scheme. The built-in current-limiting feature ensures that the device connected to the output is protected against excessive current which could lead to damage.

The AP22653W6-7 incorporates a slew rate-controlled turn-on characteristic, significantly reducing inrush current and thereby minimizing the impact on the power source. This is particularly beneficial in USB applications where inrush current can cause voltage drops that disrupt the operation of other devices connected to the same bus.

Another noteworthy feature of the AP22653W6-7 is its over-temperature protection circuitry. This safety mechanism automatically shuts off the power switch in the event that the junction temperature exceeds the thermal shutdown threshold. Once the temperature falls to a safe level, the switch will automatically restart, ensuring continuous protection for the system.

Moreover, the AP22653W6-7 includes under-voltage lockout (UVLO) functionality, which turns off the power switch if the input voltage drops below a certain threshold, preventing malfunction of the system due to insufficient power supply.

With its fast short-circuit response time, the AP22653W6-7 quickly reacts to fault conditions, thereby providing an additional layer of security for sensitive components. The device also features an active-high enable input that allows for simple on/off control, giving system designers flexibility in power management.

In summary, the AP22653W6-7 from Diodes Incorporated is an ideal solution for applications requiring a compact, efficient, and reliable power switch with advanced protection features. Its robust design and comprehensive set of functions make it a top choice for designers looking to enhance the safety and stability of their power management systems.
