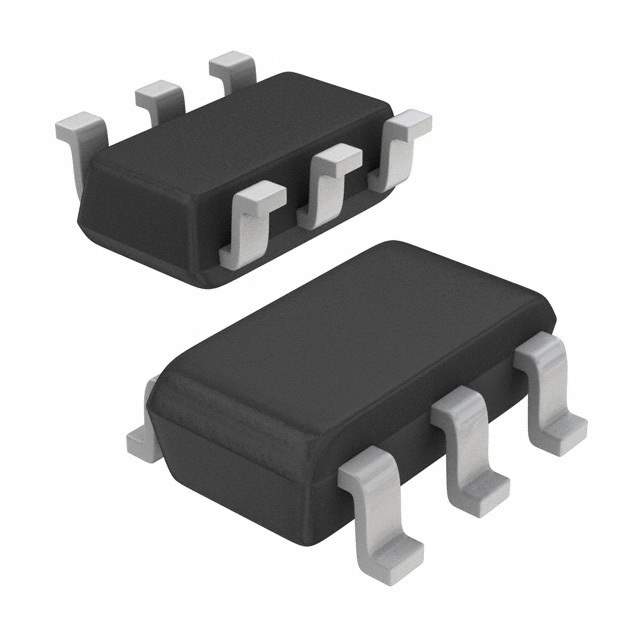

AP3772HBK6TR-G1-2

Part No AP3772HBK6TR-G1-2
Manufacturer Diodes Incorporated
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC REG CTLR AC/DC GEN3
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Diodes Incorporated
Packaging Reel - TR
Status Active
Output Isolation Isolated
Topology Flyback
Voltage - Start Up 15.5V
Supply Voltage - Operating 3.5 V to 30 V
Fault Protection Open Circuit, Over Voltage, Short Circuit
Control Operating Temperature -40°C to 85°C (TA)
Case / Package SOT-23-6
Mounting Surface Mount
Win Source Part Number 1017748-AP3772HBK6TR-G1-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AP3772HBK6TR-G1-2 CAD Model

Description

The AP3772HBK6TR-G1-2 is a cutting-edge power management IC designed by Diodes Incorporated, a leader in the semiconductor industry. This product is engineered to provide efficient and reliable power control, making it an ideal choice for a wide range of applications. Its compact design and high performance make it a preferred option for designers looking to optimize power consumption in their electronic devices.

Key Features

  • High Efficiency: The AP3772HBK6TR-G1-2 is built to deliver high-efficiency power conversion, which can significantly reduce energy loss and heat generation in electronic systems.
  • Advanced Power Management: This IC integrates sophisticated power management features to ensure stable operation under various load conditions, contributing to the longevity and reliability of the end product.
  • Low Standby Power: It is designed to consume minimal power in standby mode, making it an excellent choice for battery-powered devices where extending battery life is crucial.
  • Compact Footprint: The small package size of this IC allows for a more compact overall design of the final product, providing more flexibility in space-constrained applications.
  • Robust Protection: The AP3772HBK6TR-G1-2 incorporates multiple protection features to safeguard against over-current, over-voltage, and over-temperature conditions, ensuring safe operation and preventing damage to the device.

Applications

The versatility of the AP3772HBK6TR-G1-2 extends to a wide array of applications, including but not limited to:

  • Consumer Electronics
  • Power Supply Units
  • Battery Chargers
  • Networking Equipment
  • Office Automation Machines

Technical Specifications

With precise engineering, the AP3772HBK6TR-G1-2 offers a range of technical specifications that cater to rigorous power management requirements:

  • Package: SOT26
  • Operating Temperature Range: -40°C to +85°C
  • Output Voltage: Adjustable
  • Switching Frequency: Optimized for efficiency

In conclusion, the AP3772HBK6TR-G1-2 from Diodes Incorporated is a highly efficient and reliable power management solution that meets the demands of modern electronic devices. Its combination of advanced features and robust protection mechanisms makes it a top choice for designers aiming to enhance system performance and energy efficiency.
