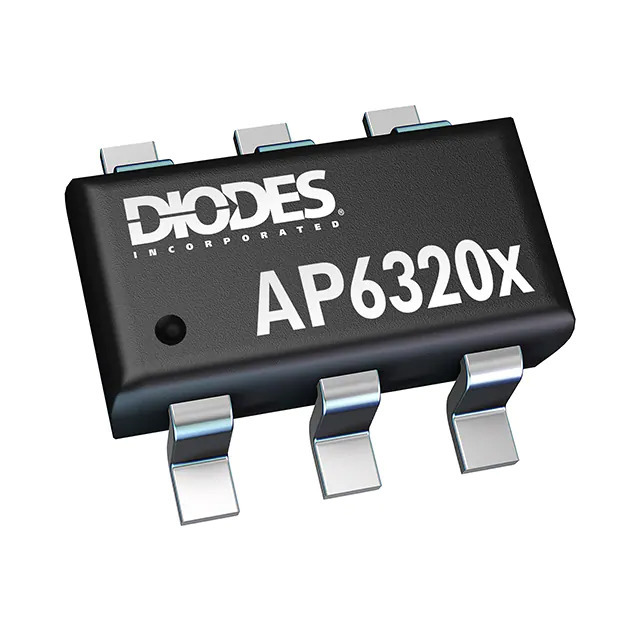

The AP63205WU-7 is a high-performance, synchronous buck converter designed and manufactured by Diodes Incorporated. This advanced power solution is engineered to deliver exceptional efficiency and stability, making it an ideal choice for a wide range of applications, including consumer electronics, telecommunications, networking, and industrial systems.

Key Features

• Output Voltage: The device offers an adjustable output voltage range, ensuring versatility for different design requirements.
• High Efficiency: With its synchronous buck topology, the AP63205WU-7 achieves high conversion efficiency, minimizing energy loss and heat generation.
• Current Capability: Capable of delivering up to 2A of continuous output current, it can power a broad array of components.
• Thermal Management: The converter is equipped with excellent thermal performance features, including over-temperature protection to ensure reliable operation under varying conditions.
• Package: Housed in a compact U-DFN2020-6 (Type B) package, it occupies minimal board space, which is crucial for space-constrained applications.

Applications

The AP63205WU-7's versatile nature makes it suitable for diverse applications. It's commonly used in:

• Portable and battery-powered devices
• Set-top boxes and digital TVs
• Networking and telecommunications equipment
• Computing peripherals and storage systems

Technical Specifications

• Input Voltage Range: 3.8V to 32V
• Switching Frequency: 500kHz
• Operating Temperature Range: -40°C to +125°C

With its robust design and comprehensive protection features, including under-voltage lockout, over-current, and short-circuit protection, the AP63205WU-7 ensures dependable performance in even the most demanding environments. By choosing the AP63205WU-7, designers can achieve an optimal balance between efficiency, size, and thermal performance, enhancing the overall quality and reliability of their end products.

For detailed technical documentation, application notes, and support resources, interested parties are encouraged to visit the official Diodes Incorporated website or contact their local sales representative.
