Diodes Incorporated AP7341D-30FS4-7 Low Dropout Regulator

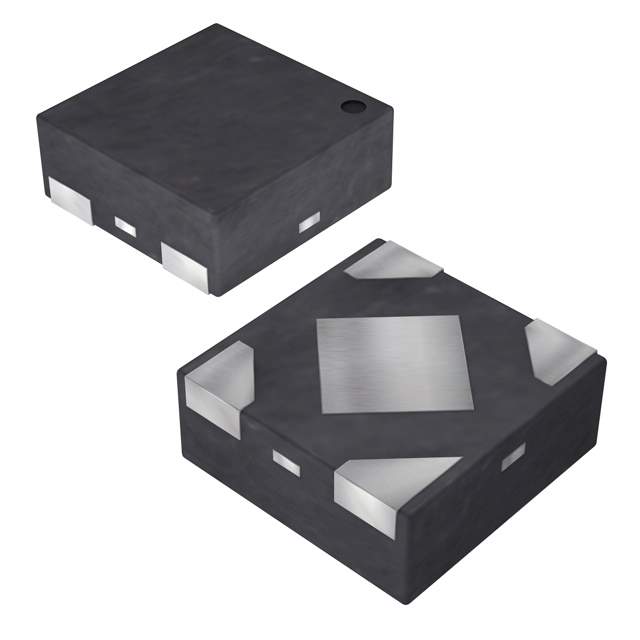

The AP7341D-30FS4-7 is a high-performance, low dropout (LDO) voltage regulator from Diodes Incorporated, designed to deliver a fixed output voltage of 3.0V with a maximum output current of 150mA. This LDO regulator is an excellent choice for portable electronic devices due to its small form factor and high efficiency. The device is housed in a compact X2-DFN1006-4 package, making it ideal for space-constrained applications.

One of the key features of the AP7341D-30FS4-7 is its low quiescent current, which is particularly beneficial for battery-powered devices, helping to extend battery life. The regulator offers excellent load and line regulation, ensuring a stable voltage supply even with varying input voltages and load conditions. This stability is crucial for sensitive electronics that require a consistent power supply for optimal performance.

The AP7341D-30FS4-7 integrates several protective features to safeguard the connected components. These include short-circuit protection and thermal shutdown, which prevent damage from excessive current and overheating, respectively. Additionally, the device has an over-current protection mechanism that limits the output current to prevent overloading.

With its low dropout voltage, the AP7341D-30FS4-7 can maintain regulation with a minimal difference between the input and output voltage, which is particularly useful when the supply voltage is close to the output voltage. This feature, combined with a fast transient response, makes the regulator suitable for applications that experience rapid changes in load, such as microprocessors and digital cameras.

The AP7341D-30FS4-7 is RoHS compliant and supports a wide operating temperature range, making it versatile for various industrial and commercial applications. Its high power supply rejection ratio (PSRR) minimizes noise from the power supply, which is essential for RF and precision analog circuits.

In summary, the AP7341D-30FS4-7 from Diodes Incorporated is a reliable and efficient solution for power management in a wide range of electronic devices. Its compact size, protective features, and stable performance make it an excellent choice for designers looking to optimize their power supply designs.
