Product Overview: AZ2940D-3.3E1

The AZ2940D-3.3E1 is a high-performance, low-dropout (LDO) linear regulator designed and manufactured by Diodes Incorporated, a leading global provider of discrete, analog, and mixed-signal semiconductors. This regulator is designed to deliver a fixed output voltage of 3.3V with an output current of up to 1A, making it an ideal choice for a wide range of applications that require a stable and reliable power supply.

Key Features

• Output Voltage: 3.3V fixed output with high accuracy.
• Output Current: Capable of delivering up to 1A of continuous current.
• Low Dropout Voltage: Minimal voltage drop across the regulator, enhancing efficiency and allowing operation close to the input voltage.
• Thermal Protection: Integrated over-temperature shutdown mechanism to protect the device under excessive temperature conditions.
• Current Limiting: Built-in current limit feature to safeguard the regulator and the load from overcurrent conditions.
• Stable with Low ESR Capacitors: Compatible with low ESR ceramic capacitors, which reduce the overall size and cost of the power supply design.

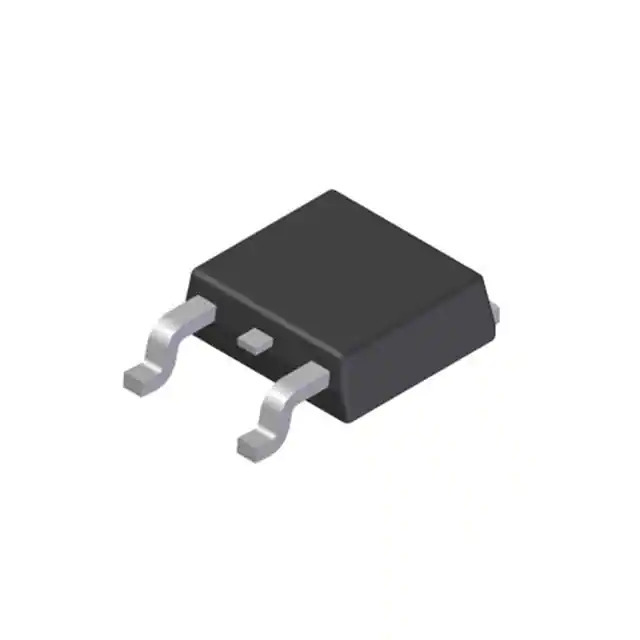

• Package: Available in the TO-252 package, which is suitable for automated assembly and offers good thermal performance.

Applications

The AZ2940D-3.3E1 is versatile and can be used in various electronic devices and systems, including:

• Consumer electronics such as set-top boxes, gaming consoles, and audio/video equipment.
• Telecommunications equipment like routers, switches, and modems.
• Computer peripherals and networking devices such as printers and network interface cards.
• Battery-powered devices requiring efficient power management.

Quality and Reliability

Diodes Incorporated is committed to providing high-quality products that meet the rigorous demands of the electronics industry. The AZ2940D-3.3E1 is no exception, with its robust design and built-in protection features ensuring long-term reliability for critical applications.

For detailed specifications, application notes, and additional resources, customers are encouraged to visit the official Diodes Incorporated website or contact their local sales representative.
