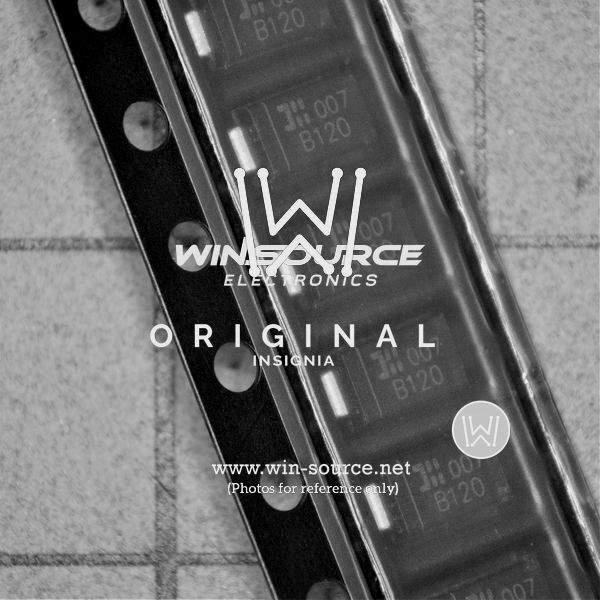

The B120-13-F from Diodes Incorporated is a robust surface-mount Schottky barrier rectifier designed for high-efficiency power conversion applications. This component is a testament to Diodes Incorporated's commitment to providing industry-leading solutions for electronic circuits requiring low voltage drop and energy-saving characteristics.

Key Features

• Voltage Rating: The B120-13-F has a repetitive peak reverse voltage of 20V, making it suitable for a variety of low voltage applications.
• Forward Current: It boasts a high forward continuous current of 1A, ensuring reliable performance in demanding conditions.
• Power Efficiency: With its Schottky barrier design, the device offers a low forward voltage drop, typically around 0.5V at 1A, which enhances power efficiency and reduces thermal loading.
• Thermal Characteristics: The B120-13-F is designed to operate within a junction temperature range of -65°C to 125°C, accommodating a wide range of environmental conditions.
• Package: Encased in a compact SOD-123 flat lead package, it is optimized for space-constrained applications and allows for efficient automated assembly.
• Reverse Leakage Current: Exhibits low reverse leakage current, contributing to its high efficiency and minimal power loss during operation.
• RoHS Compliant: The device is compliant with RoHS standards, ensuring that it meets global environmental and regulatory requirements.

Applications

The B120-13-F is versatile and can be used in a variety of electronic circuits, including:

• Low voltage, high frequency inverters
• Free-wheeling and polarity protection applications
• DC/DC converters
• Power supply devices
• Automotive applications

Conclusion

The B120-13-F Schottky barrier rectifier from Diodes Incorporated is an exemplary choice for designers looking for a reliable and efficient component capable of withstanding the rigors of modern electronic applications. Its combination of low forward voltage drop, high current capability, and thermal resilience makes it an invaluable part of power conversion and management solutions.
