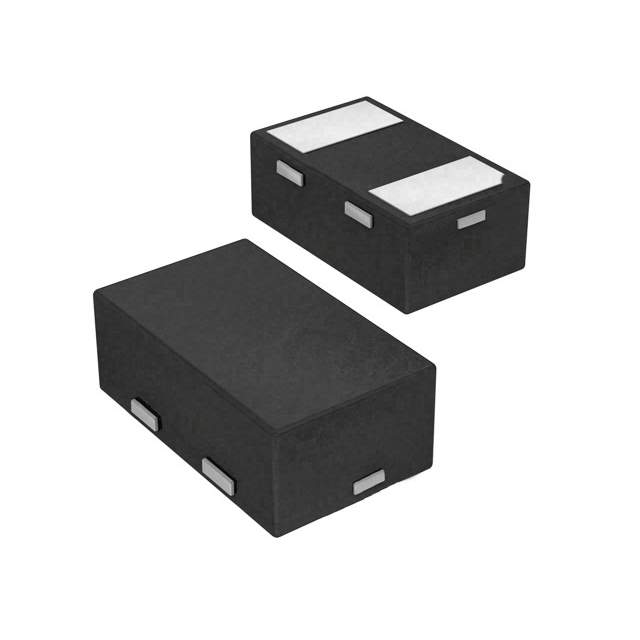

BAS16LP-7

Part No BAS16LP-7
Manufacturer Diodes Incorporated
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 75V 200MA 2DFN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Diodes Incorporated
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 75V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 1.25V @ 150mA
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage @ Vr 1μA @ 75V
Capacitance @ Vr, F 2pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package X1-DFN1006-2
Operating Temperature - Junction -65°C to 150°C
Win Source Part Number 010876-BAS16LP-7
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Automotive, Signal Processing
Ultra Librarian 3D Model Ultra Librarian BAS16LP-7 CAD Model

Description

Product Overview: BAS16LP-7 - Diodes Incorporated

The BAS16LP-7 is a high-performance switching diode designed and manufactured by Diodes Incorporated, a leading global manufacturer and supplier of high-quality semiconductor products. This device is engineered to meet the stringent requirements of fast switching applications, making it an ideal choice for high-speed switching operations in a wide range of electronic circuits.

Key Features

  • Low Profile Package: The BAS16LP-7 comes in an ultra-small leadless DFN1006-2 package, which is designed for surface mount technology (SMT) and occupies minimal space on a printed circuit board (PCB).
  • Fast Switching Speed: With its fast switching characteristics, this diode is capable of turning on and off at high speeds, which is critical for applications requiring quick response times.
  • High Voltage Rating: The device can withstand high reverse voltages, making it suitable for applications that experience voltage spikes or need to block high voltages.
  • Low Leakage Current: It exhibits low leakage current when in the off state, thereby ensuring minimal power loss and increased efficiency in the overall circuit.
  • RoHS Compliant: The BAS16LP-7 is compliant with the RoHS directive, which means it is free from hazardous substances and meets environmental standards for electronic components.

Applications

The versatility of the BAS16LP-7 allows it to be used in various applications including, but not limited to:

  • High-speed switching in logic circuits
  • Inverter circuits
  • Protection circuits
  • General-purpose switching applications

Technical Specifications

Parameter Value
Package DFN1006-2
Reverse Voltage 85V
Forward Current 215mA
Power Dissipation 200mW
Operating Temperature Range -55°C to +150°C

The BAS16LP-7 is a testament to Diodes Incorporated's commitment to providing high-quality, reliable semiconductor solutions. Its compact form factor, fast switching capabilities, and compliance with environmental standards make it an excellent choice for designers and engineers looking to optimize their electronic designs for performance and space efficiency.
