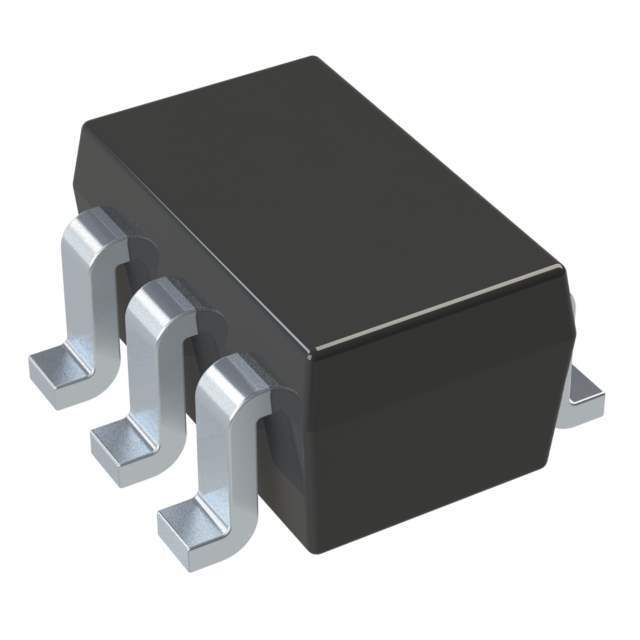

BAT54SDWQ-7-FDiodes Incorporated
Same model may have multiple batches, images only for reference.

BAT54SDWQ-7-F

Part No BAT54SDWQ-7-F
Manufacturer Diodes Incorporated
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARR SCHOT 30V 200MA SOT363
Datasheet
BAT54SDWQ-7-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Discrete Semiconductor Products> Diodes Rectifiers Diode Arrays
Part Status Active
Diode Configuration 2 Pair Series Connection
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 1 V @ 100 mA
Reverse Recovery Time (trr) 5 ns
Current - Reverse Leakage @ Vr 2 µA @ 25 V
Operating Temperature - Junction -65°C ~ 125°C
Mounting Type Surface Mount
Win Source Part Number WS1309898-BAT54SDWQ-7-F
Ultra Librarian 3D Model Ultra Librarian BAT54SDWQ-7-F CAD Model

Description

200mA surface mount Schottky Barrier Diode in SOT363 package, offers low turn-on voltage and fast switching capability, designed with PN Junction Guard Ring for Transient and ESD Protection, totally lead-free finish and RoHS compliant, “Green” device.
