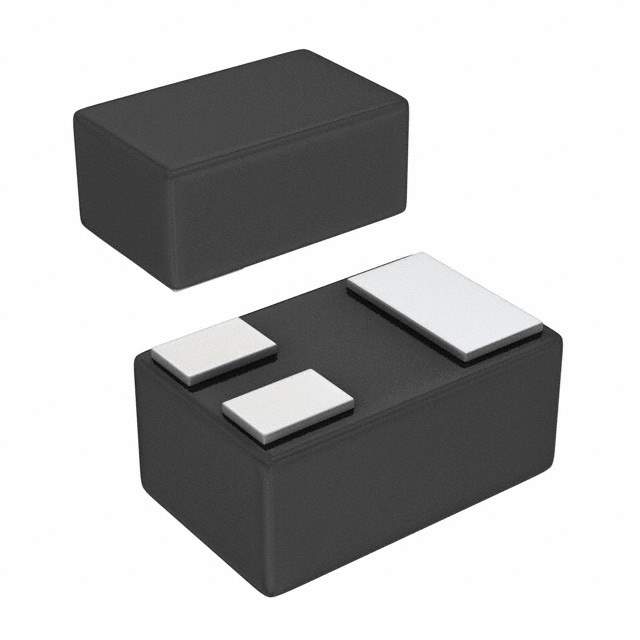

Introducing the DDTC143ZLP-7 Pre-Biased Transistor

The DDTC143ZLP-7 is a state-of-the-art pre-biased transistor from Diodes Incorporated, designed to offer an efficient and compact solution for digital and switching applications. This innovative component boasts a combination of a resistor-equipped NPN transistor, which simplifies circuit design by reducing component count, and is housed in a small PowerDI3333-8 package, making it ideal for space-constrained applications.

Key Features and Benefits

• Integrated Bias Resistor: The DDTC143ZLP-7 comes with an in-built bias resistor, which helps to stabilize the operation of the transistor without the need for external components, thus simplifying the design and saving on PCB space.
• Surface-Mount Package: Encased in a PowerDI3333-8 surface-mount package, this transistor is designed for automated assembly processes, and its compact footprint is perfect for densely packed PCBs.
• Low V<sub>CE(sat): It exhibits low collector-emitter saturation voltage, which translates to reduced power loss and improved efficiency in operation, particularly beneficial in battery-powered devices.
• Complementary PNP Type: The DDTC143ZLP-7 has a complementary PNP type available, allowing for design flexibility and ease of use in various circuit configurations.
• RoHS Compliant: As a RoHS-compliant product, it meets environmental standards, minimizing the presence of hazardous substances in electronic components.

Applications

The DDTC143ZLP-7 is versatile and can be used in a wide range of applications. Its primary use cases include:

• Inverter Circuits
• Switching Circuits
• Interface Circuits
• Driver Circuits

Product Specifications

With a maximum rating of 50V for collector-base voltage (V<sub>CBO) and collector-emitter voltage (V<sub>CEO), and a continuous collector current (I<sub>C) of 100mA, the DDTC143ZLP-7 is robust and suitable for a variety of electronic applications. Its integrated resistors have values of 4.7kΩ for the base resistor (R1) and 10kΩ for the resistor between the base and emitter (R2), ensuring optimal performance and reliability.

Whether you're designing power management systems, consumer electronics, or portable devices, the DDTC143ZLP-7 from Diodes Incorporated provides a practical and effective solution for your transistor needs.
