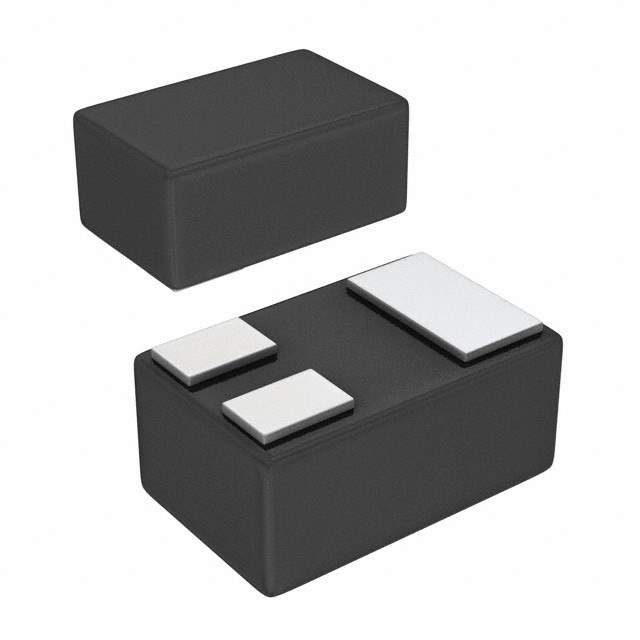

DDTC144ELP-7

Part No DDTC144ELP-7
Manufacturer Diodes Incorporated
Catalog Transistors (BJT) - Single, Pre - Biased
Description TRANS PREBIAS NPN 250MW 3DFN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Diodes Incorporated
Packaging Reel - TR
Status Active
Transistor Polarity NPN - Pre-Biased
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Resistor - Base (R1) (Ohms) 47k
Resistor - Emitter Base (R2) (Ohms) 47k
Typical Gain (hFE) (Min) 68 @ 5mA, 5V
Max Vce (sat) 300mV @ 500μA, 10mA
Collector Cut-off Current(Max) 500nA (ICBO)
Frequency - Transition 250MHz
Maximum Power Dissipation 250mW
Mounting SMD (SMT)
Case / Package 3-DFN1006 (1.0x0.6)
Win Source Part Number 100026-DDTC144ELP-7
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian DDTC144ELP-7 CAD Model

Description

Product Overview: DDTC144ELP-7

The DDTC144ELP-7 is a cutting-edge pre-biased transistor from the reputable semiconductor manufacturer, Diodes Incorporated. This innovative component is designed for use in a variety of electronic applications where space and power efficiency are critical. It's a perfect choice for designers looking for a reliable and compact solution for their circuit designs.

Key Features

  • Transistor Type: This product is a NPN pre-biased small signal transistor, which simplifies circuit design by incorporating the biasing resistors.
  • Configuration: It comes in a single configuration, making it easy to implement in a variety of designs.
  • Power Dissipation: The DDTC144ELP-7 is capable of dissipating up to 200 mW, enabling it to handle moderate power levels efficiently.
  • DC Current Gain (hFE): It offers a substantial DC current gain, ensuring a high level of amplification in electronic circuits.
  • Operating Temperature Range: This transistor can operate effectively over a wide temperature range, making it suitable for various environmental conditions.
  • Mounting Type: The surface-mount package allows for a streamlined manufacturing process and is ideal for high-volume production.
  • Package / Case: It is enclosed in an SOT-523 package, which is known for its small footprint and suitability for compact PCB layouts.
  • RoHS Compliant: Compliance with the Restriction of Hazardous Substances (RoHS) directive makes this product environmentally friendly and suitable for use in a wide range of markets.

Applications

The DDTC144ELP-7 is versatile and can be used in various applications, including but not limited to:

  • Signal processing
  • Power management
  • Switching circuits
  • Voltage regulation
  • Amplification stages

Quality and Reliability

Diodes Incorporated is known for its commitment to quality and reliability, and the DDTC144ELP-7 is no exception. Each transistor is manufactured with the highest standards to ensure consistent performance and longevity in all applications.
