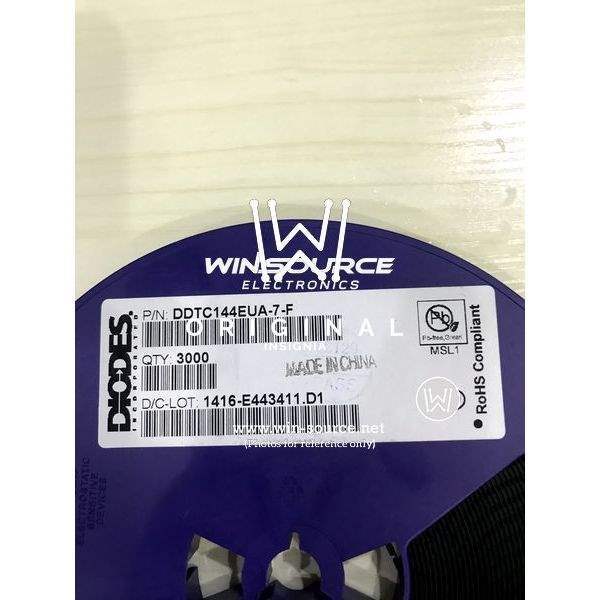

The DDTC144EUA-7-F from Diodes Incorporated is a pre-biased transistor, which is a small signal device that integrates a single transistor and a resistor into one package. This innovative design simplifies circuit design and minimizes board space by offering a compact, two-in-one solution for a variety of electronic applications.

Key Features

• Transistor Type: NPN - Pre-Biased
• Resistor Ratio, R1/R2: 47 kOhm, 47 kOhm
• DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 5mA, 5V
• Transition Frequency: 250MHz
• Power - Max: 150mW
• Mounting Type: Surface Mount
• Package / Case: SC-74A, SOT-753
• Supplier Device Package: SOT-323-3
• Operating Temperature: -55°C ~ 150°C

Applications

The DDTC144EUA-7-F is designed for use in various applications where space is at a premium and where a simple biasing solution is needed. This includes, but is not limited to, portable electronics, power management circuits, signal processing, and control systems. Its compact design and integrated resistor network make it ideal for pull-up or pull-down resistor configurations in digital logic circuits, as well as for biasing transistors in amplifiers and switches.

Product Advantages

By integrating the resistor with the transistor, the DDTC144EUA-7-F offers a reduction in component count, which not only saves space but also reduces assembly time and cost. The pre-biased configuration ensures consistent performance and simplifies the design process by eliminating the need for external biasing components. Additionally, the product's robust operating temperature range ensures reliability across various environmental conditions.

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the DDTC144EUA-7-F is no exception. It is manufactured to meet high industry standards, ensuring performance and durability for the end-user. The product is also RoHS compliant, reflecting Diodes Incorporated's dedication to environmental responsibility.
