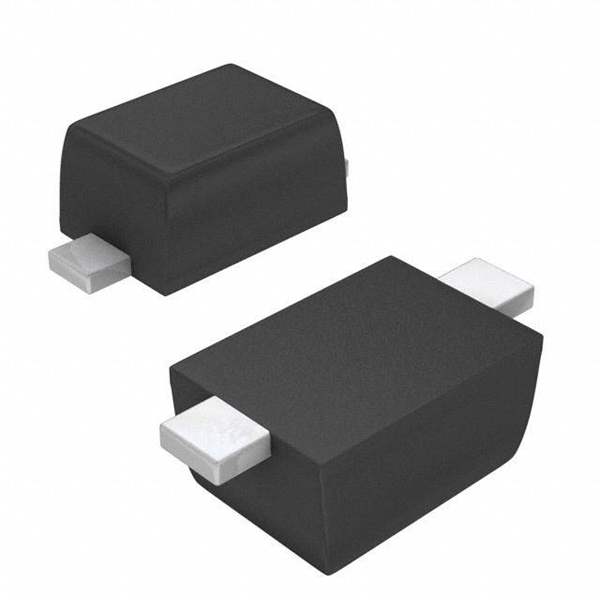

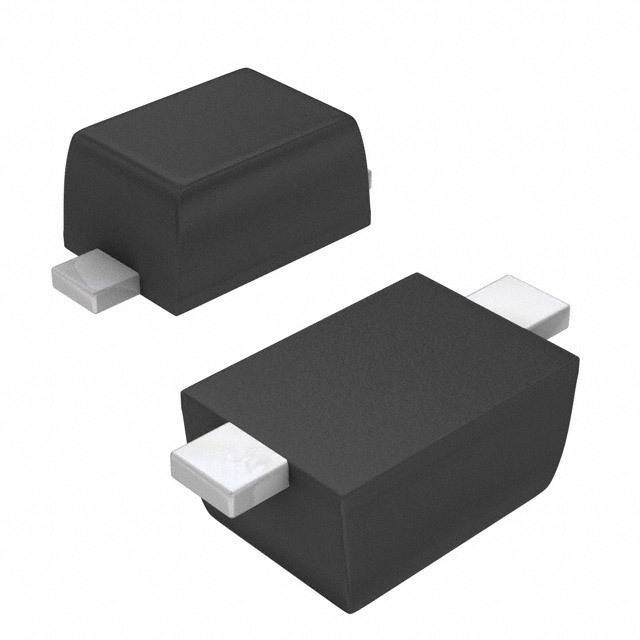

The DDZ9702T-7 is a precision Zener diode designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This high-quality component is engineered to provide a reliable voltage reference with a nominal Zener voltage of 4.7V. It is commonly used in voltage regulation applications to ensure stable performance in a wide range of electronic circuits.

Key Features

• Zener Voltage: The device features a precise Zener voltage of 4.7V, which is ideal for a variety of voltage regulation tasks within electronic circuits.
• Power Dissipation: With a power dissipation of 500mW, the DDZ9702T-7 can handle moderate levels of power while maintaining its Zener voltage regulation.
• Package: The diode comes in an SOD-523 package, which is known for its small size, making it suitable for high-density circuit designs where space is at a premium.
• Low Leakage Current: It has a low leakage current characteristic, which contributes to its high efficiency and reliability in operation.
• Operating Temperature Range: The device is designed to operate over a wide temperature range from -55°C to +150°C, ensuring stability across various environmental conditions.

Applications

The DDZ9702T-7 Zener diode is versatile and can be utilized in a multitude of applications. Some of the common uses include:

• Voltage regulation in power supplies
• Protection circuits to prevent overvoltage conditions
• Reference voltage sources in analog-to-digital converters (ADCs)
• Waveform shaping and clipping circuits
• Surge suppression devices

Quality and Reliability

Diodes Incorporated is committed to delivering products that meet the highest standards of quality and reliability. The DDZ9702T-7 is no exception, undergoing rigorous testing to ensure it performs to specifications under varying conditions. This commitment to quality makes the DDZ9702T-7 a dependable choice for designers and engineers looking for a stable Zener diode solution.

For detailed specifications and application support, customers are advised to consult the official datasheet provided by Diodes Incorporated or contact their technical support team for further assistance.
