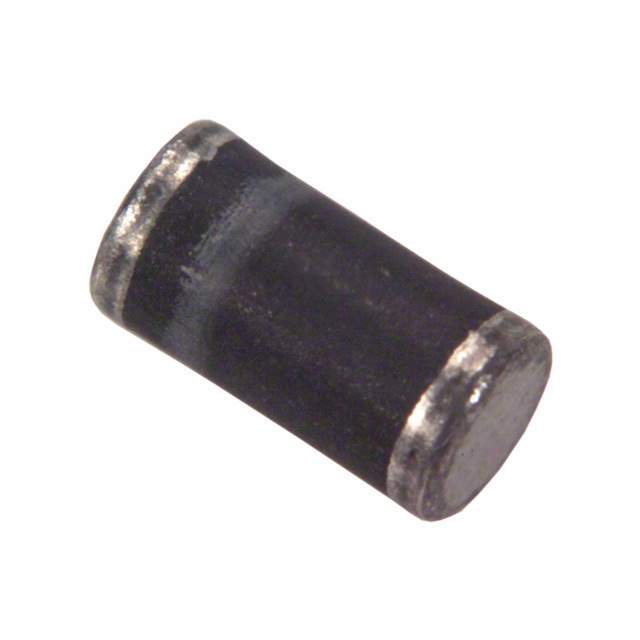

Introducing the DL4005-13-F Rectifier Diode from Diodes Incorporated

The DL4005-13-F is a high-quality rectifier diode designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This component is a staple in electronic circuits, known for its reliability and efficiency in converting alternating current (AC) to direct current (DC). The DL4005-13-F is suitable for a wide range of applications, including power supply, converters, and as a freewheeling diode in various electronic devices.

Key Features

• High Current Capability: With a forward current of 1A, the DL4005-13-F can handle a significant amount of current, making it suitable for high-power applications.
• Low Forward Voltage Drop: The diode has a low forward voltage drop, which enhances system efficiency by minimizing power loss during the rectification process.
• High Surge Current Capability: It can withstand high surge currents, ensuring protection against sudden spikes in the circuit, which is critical for the longevity of the electronic components.
• DO-204AL Package: The DL4005-13-F comes in a DO-204AL (DO-41) axial-lead package, which is commonly used and easy to install in a variety of circuit layouts.

Electrical Characteristics

• Maximum Repetitive Reverse Voltage (Vrrm): 600V, providing a wide safety margin for applications with high voltage requirements.
• Operating Junction Temperature: The diode operates effectively within a junction temperature range of -65°C to 150°C, ensuring reliability under varying environmental conditions.

Applications

The DL4005-13-F is versatile and can be used in:

• Power supply units
• DC-DC converters
• Automotive applications
• Battery chargers
• Lighting circuits
• Telecommunication systems

With its superior electrical characteristics and robust design, the DL4005-13-F from Diodes Incorporated is an excellent choice for designers and engineers looking for a dependable rectifier diode. Whether you're working on consumer electronics or industrial power systems, the DL4005-13-F delivers performance that you can count on.

For more detailed information, including datasheets, technical specifications, and ordering options, please visit Diodes Incorporated's official website or contact their sales representatives.
