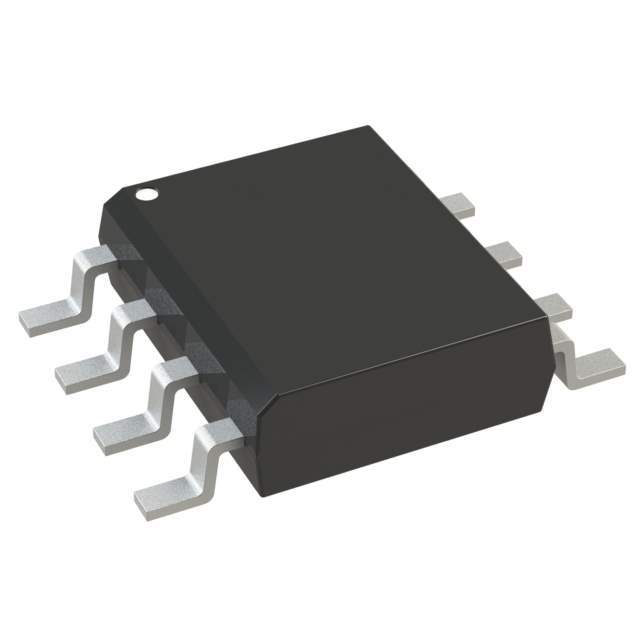

Same model may have multiple batches, images only for reference.
DMC10H172SSD-13 Diodes Incorporated
Same model may have multiple batches, images only for reference.

DMC10H172SSD-13

Part No DMC10H172SSD-13
Manufacturer Diodes Incorporated
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N/P-CH 100V 2A/1.7A 8SO
Datasheet
DMC10H172SSD-13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309258-DMC10H172SSD-13
Category Discrete Semiconductor Products >Transistors> FETs, MOSFETs FET, MOSFET Arrays
Manufacturer Diodes Incorporated
Packaging Bulk
Part Status Active
Technology MOSFET (Metal Oxide)
Configuration N and P-Channel
Drain to Source Voltage (Vdss) 100V
Current - Continuous Drain (Id) @ 25°C 2A (Ta), 1.7A (Ta)
Rds On (Max) @ Id, Vgs 160mOhm @ 1.6A, 10V, 250mOhm @ 1A, 10V
Vgs(th) (Max) @ Id 3V @ 250µA
Ultra Librarian 3D Model Ultra Librarian DMC10H172SSD-13 CAD Model

Description

  • 100% Unclamped Inductive Switch (UIS) Test in Production
  • Low Input Capacitance
  • Low On-Resistance
  • Fast Switching Speed
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
