Introducing the DMN2300UFD-7 P-Channel MOSFET

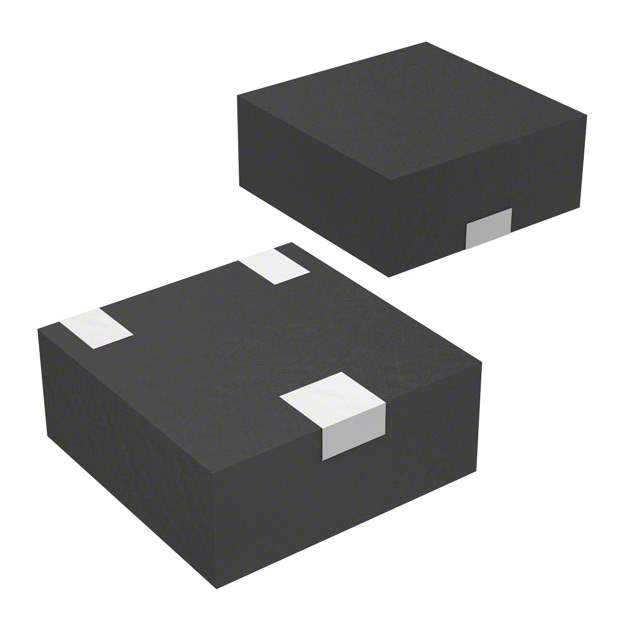

The DMN2300UFD-7 is a high-performance P-Channel enhancement mode Field Effect Transistor (FET) designed by the reputable semiconductor manufacturer, Diodes Incorporated. This compact and efficient power management component is housed in an ultra-thin DFN2020-6 (Type B) package, making it an excellent choice for space-constrained applications.

Key Features:

• Low On-Resistance: The DMN2300UFD-7 boasts a low on-resistance of just 65mΩ at V<sub>GS = -4.5V, which ensures minimal power loss and improved efficiency in operation.
• High Power Dissipation: With a power dissipation of 1.4W, this MOSFET can handle significant power, making it suitable for a wide range of applications.
• Advanced Packaging: The device comes in a DFN2020-6 (Type B) package, which offers excellent thermal performance and a small footprint on the PCB.
• Voltage Rating: It operates at a drain-source voltage of -20V, providing ample headroom for various electronic designs.
• Gate Threshold Voltage: A low gate threshold voltage of -0.45V to -1V facilitates easy drive capability.

Applications:

The DMN2300UFD-7 is versatile and can be used in a variety of applications, including:

• Power management circuits
• Load switches
• Battery management systems
• DC-DC converters
• Portable electronic devices

Reliability and Quality:

Diodes Incorporated is known for its commitment to quality and reliability, and the DMN2300UFD-7 is no exception. It is designed to meet the stringent requirements of the modern electronics industry and is RoHS compliant, ensuring environmental safety and sustainability.

Conclusion:

Whether you're designing power-intensive applications or looking for a reliable switch for your portable devices, the DMN2300UFD-7 from Diodes Incorporated provides the performance and efficiency you need. Its robust design, coupled with a low on-resistance and high power dissipation, makes it a prime choice for engineers and designers looking to enhance their electronic designs.
