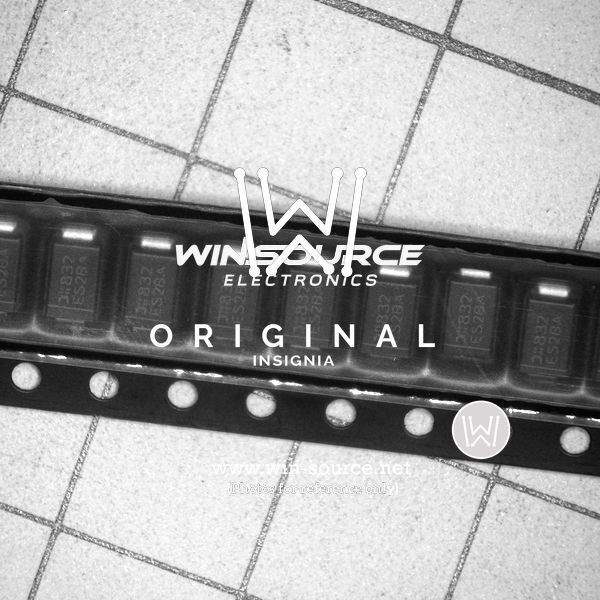

Product Overview: ES2BA-13-F by Diodes Incorporated

The ES2BA-13-F is a high-efficiency, surface-mount rectifier diode designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This product is engineered to provide fast switching capabilities with low power loss, making it an ideal choice for high-frequency rectification and freewheeling application in switching power supplies and other power-switching applications.

This rectifier diode features a forward current of 2A with a reverse voltage of 100V, offering robust performance for a wide range of applications. The ES2BA-13-F is packaged in the SMA (DO-214AC) package, which is known for its compact size and ease of installation, making it suitable for high-density circuit designs.

Key Features:

• High Current Capability: With a forward current rating of 2A, the ES2BA-13-F can handle significant current, making it suitable for various electronic circuits.
• Low Forward Voltage Drop: The low forward voltage drop minimizes power loss and improves efficiency, which is critical for power-sensitive designs.
• Fast Switching Speed: The device's fast reverse recovery time ensures high efficiency in switching applications, reducing energy waste.
• High Reliability: Built to Diodes Incorporated's high-quality standards, the ES2BA-13-F offers excellent reliability in demanding situations.
• RoHS Compliant: The product meets the requirements of the Restriction of Hazardous Substances Directive, making it environmentally friendly and safe for use in various markets.

Applications:

The ES2BA-13-F is versatile and can be used in a variety of applications, including:

• Power Supply Units (PSUs)
• Automotive Systems
• Consumer Electronics
• Telecommunications Equipment
• Lighting Systems
• Industrial Equipment

In summary, the ES2BA-13-F from Diodes Incorporated is a superior choice for designers who require a reliable and efficient rectifier diode that can deliver high performance in a compact, surface-mount package. Its combination of fast switching, low power loss, and high current capability makes it a valuable component in a wide range of electronic circuits.
