Product Overview: Diodes Incorporated ES3J-F

The ES3J-F from Diodes Incorporated is a high-efficiency, surface-mount Super Fast Rectifier designed to provide reliable and fast switching in a variety of applications. Crafted with the needs of modern electronics in mind, this rectifier is a perfect fit for high-frequency rectification and freewheeling application in switching mode power supplies (SMPS), inverters, and as a freewheeling diode for motor applications.

Key Features

• High Reverse Voltage Capability: The ES3J-F is rated for a reverse voltage of 600V, making it suitable for high-voltage applications.
• Super Fast Recovery Time: With a recovery time as low as 35ns, this component provides exceptional performance for fast switching applications.
• Low Forward Voltage Drop: The low forward voltage drop reduces power loss and improves efficiency, which is crucial in power management applications.
• High Current Capability: The rectifier can handle a forward current of 3A, ensuring it can support a range of demanding applications.
• Robust Design: The ES3J-F is designed to withstand harsh conditions, featuring a glass passivated chip for enhanced reliability and robustness.
• Lead-Free and RoHS Compliant: This product is environmentally friendly, complying with the Restriction of Hazardous Substances (RoHS) directive.

Applications

The ES3J-F is versatile and can be used in various electronic devices and systems, including:

• Power supply management in consumer electronics like TVs, computers, and monitors.
• Industrial power supplies where efficiency and fast switching are critical.
• Lighting systems, particularly those requiring high-voltage rectification.
• Automotive applications where durability and reliability are essential.

Package and Quality Assurance

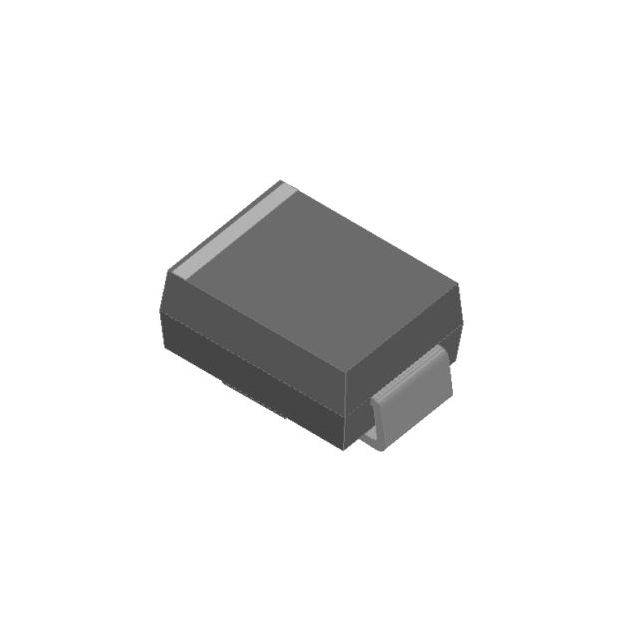

The ES3J-F comes in an SMA (DO-214AC) package, which is compact and suitable for automated assembly processes. Diodes Incorporated ensures that each unit meets stringent quality standards, providing engineers and designers with a dependable component for their electronic designs.

Whether you are designing a power supply or looking to improve the efficiency of an existing system, the ES3J-F Super Fast Rectifier from Diodes Incorporated offers the performance and reliability required to meet the challenges of modern electronic applications.
