Product Overview: Diodes Incorporated FS1ME-7

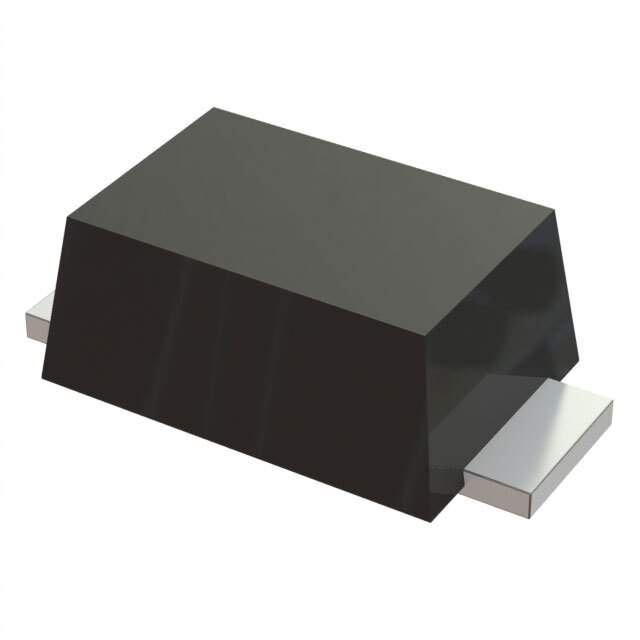

The FS1ME-7 is a high-performance, surface-mount Fast Recovery Rectifier designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This rectifier is part of the FSxME series, known for their efficiency and reliability in various electronic applications. With its compact SMA (DO-214AC) package, the FS1ME-7 is ideal for space-constrained applications where efficient energy conversion is required.

Key Features

• High Reverse Voltage Capability: The FS1ME-7 is capable of withstanding reverse voltages up to 1000V, making it suitable for high-voltage requirements in power supply circuits.
• Fast Reverse Recovery Time: With a reverse recovery time as low as 150ns, this rectifier ensures minimal energy loss and improved efficiency in switching applications.
• Low Forward Voltage Drop: The low forward voltage drop (typically 1.3V at 1A) contributes to reduced power dissipation and improved thermal performance.
• High Surge Current Capability: It can handle a surge current of up to 30A, providing robust performance against transient current spikes.
• RoHS Compliant: The FS1ME-7 is compliant with RoHS standards, ensuring that it is free from hazardous substances and environmentally friendly.

Applications

The versatile nature of the FS1ME-7 allows it to be used in a wide range of applications, including:

• Power Management Systems
• Switching Power Supplies
• Converters
• Free-Wheeling Diodes
• Reverse Battery Protection
• Automotive Environments

Quality and Reliability

Diodes Incorporated is committed to providing high-quality products. The FS1ME-7 is no exception, undergoing rigorous testing to ensure it meets the highest standards of performance and reliability. Customers can trust this rectifier to deliver consistent performance over its lifespan, even in demanding conditions.

For designers and engineers looking for a reliable and efficient rectification solution, the FS1ME-7 from Diodes Incorporated stands out as a superior choice. Its combination of fast recovery time, high voltage capability, and low power loss makes it an essential component in modern electronic systems.
