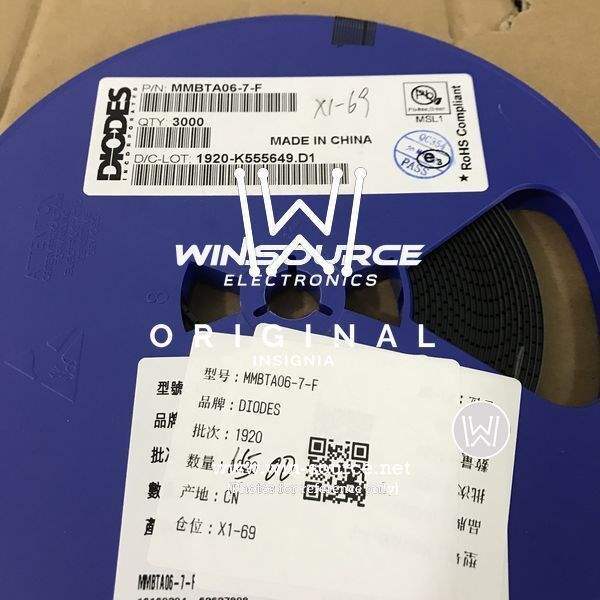

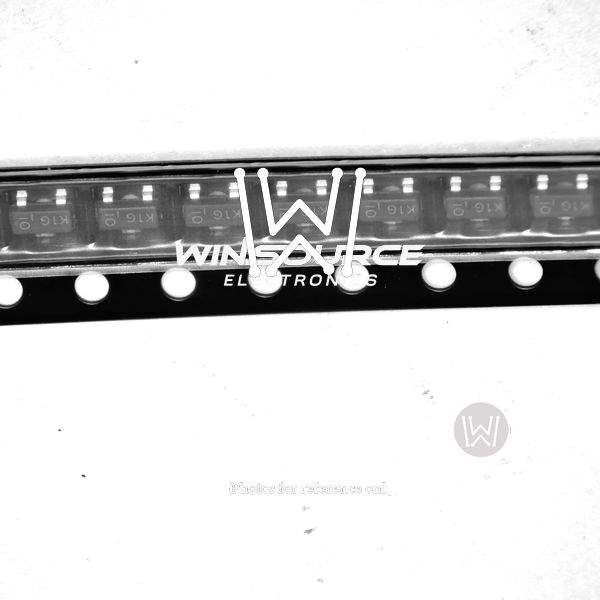

The MMBTA06-7-F is a high-performance NPN bipolar junction transistor (BJT) designed and manufactured by Diodes Incorporated, a leading global provider of discrete, logic, analog, and mixed-signal semiconductors. This transistor is engineered to address the needs of a wide range of electronic applications, offering a combination of reliability, efficiency, and versatility.

Key Features

• Device Type: NPN Bipolar Junction Transistor (BJT)
• Configuration: Single
• Collector-Emitter Voltage (Vceo): 80V
• Collector Current (Ic): 500mA
• DC Current Gain (hFE): 100 to 300 at 10mA, 5V
• Power Dissipation (Pd): 225mW
• Operating Temperature Range: -55°C to +150°C
• Mounting Type: Surface Mount
• Package / Case: SOT-23-3
• RoHS: Compliant

Applications

The MMBTA06-7-F transistor is suitable for a variety of applications including, but not limited to:

• Switching and Amplification
• Load Driver
• Signal Processing
• Power Management
• Consumer Electronics
• Industrial and Telecommunication Equipment

Quality and Reliability

Diodes Incorporated is committed to providing high-quality products. The MMBTA06-7-F is built to meet stringent quality standards, ensuring reliable performance even in demanding conditions. Its robust design makes it suitable for commercial and industrial applications that require a durable and consistent component.

Environmental Compliance

The MMBTA06-7-F transistor is RoHS compliant, meaning it adheres to the European Union's directive on the restriction of hazardous substances. This compliance ensures that the product is environmentally friendly and safe for use in electronic equipment.
