The PI3EQX16612ZLDEX from Diodes Incorporated is a high-performance, PCIe 4.0 compliant, ReDriver with integrated linear equalization, output swing, and flat gain to optimize performance over a variety of physical mediums by reducing inter-symbol interference. Diodes Incorporated's cutting-edge ReDriver technology enhances signal integrity by performing receive equalization on the deteriorated input signal followed by transmit de-emphasis, maximizing system performance.

Key Features

• Compliance: Fully compliant with PCIe 4.0 Base Specification, offering a maximum data rate of 16 GT/s which enables high-speed data transfer for a wide array of applications including servers, storage, and networking.
• Channel Configuration: Dual-channel operation, which is capable of handling two differential signal pairs simultaneously, providing flexibility and support for high-density applications.
• Adjustable Equalization: Integrated linear equalization, output swing, and flat gain settings can be programmed via pin strap or I2C, allowing for optimization based on specific application requirements.
• Low Power Consumption: Designed with power efficiency in mind, the PI3EQX16612ZLDEX minimizes power consumption, making it suitable for energy-sensitive platforms.
• Temperature Range: Operates over an industrial temperature range of -40°C to 85°C, ensuring reliable performance in extreme conditions.

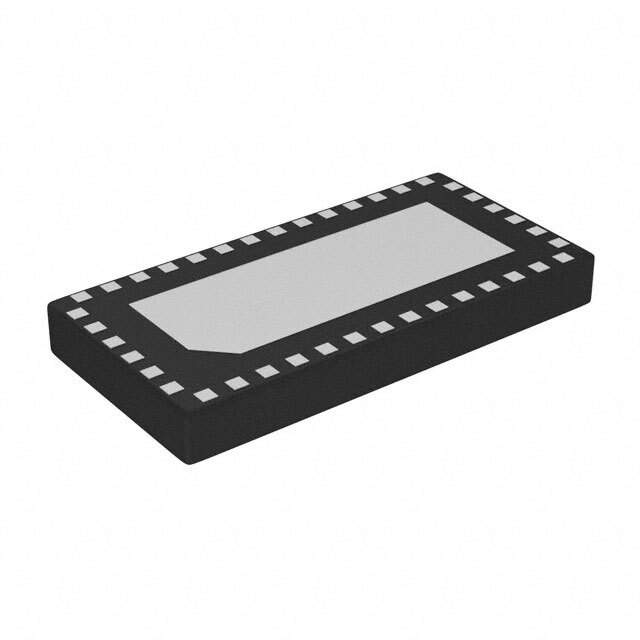

• Package: Available in a 42-contact TQFN (7x4.5mm) package, which provides a compact footprint for space-constrained applications.

Applications

The versatility of the PI3EQX16612ZLDEX makes it ideal for a broad range of applications. It is particularly well-suited for use in high-performance computing and enterprise systems where signal integrity can be compromised due to extended distances or poor medium conditions. This includes applications such as:

• Server and Workstation PCIe Slots
• High-Speed Storage and Networking Equipment
• Data Center Infrastructure
• Embedded Systems
• PCIe Add-in Cards

With its robust feature set and Diodes Incorporated's commitment to quality, the PI3EQX16612ZLDEX is an excellent choice for ensuring reliable high-speed data communications in the most demanding environments.
