The PI3USB221XAEX is a versatile, high-performance integrated circuit from Diodes Incorporated, designed to serve as a 1:2 multiplexer/demultiplexer switch for high-speed USB 2.0 signals. With its capability to operate at data rates up to 480Mbps, this switch is an ideal solution for a variety of USB applications where signal integrity and efficient switching are critical.

Key Features

• High-Speed Performance: Supports USB 2.0 data rates of 480Mbps, ensuring seamless operation for high-speed data transfer applications.
• Low On-Capacitance (C<sub>ON): Offers a low on-capacitance of 6pF (typical), which minimizes signal attenuation and preserves signal integrity during switching.
• Low On-Resistance (R<sub>ON): Features a low on-resistance of 4Ω (typical), contributing to reduced signal loss and better performance.
• Low Power Consumption: Designed for power efficiency, this switch consumes minimal power, making it suitable for battery-powered devices.
• Wide Operating Temperature Range: Operates reliably over a broad temperature range, from -40°C to 85°C, accommodating various environmental conditions.

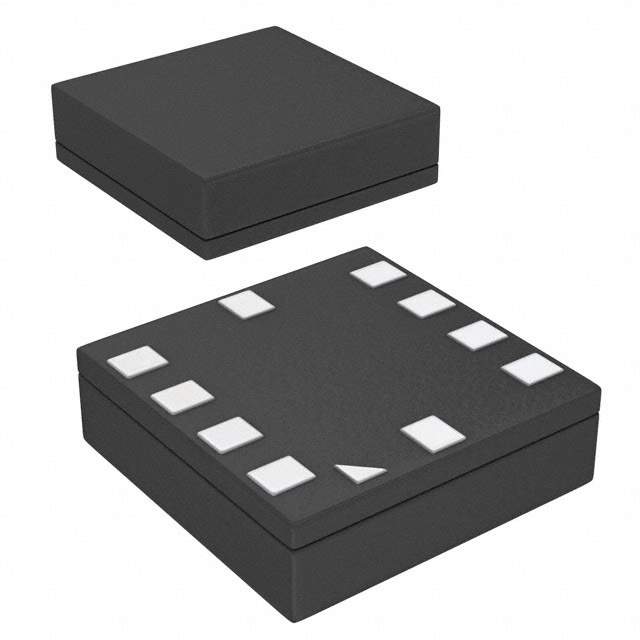

• Advanced Packaging: Available in a space-saving 10-pin DFN (2.1mm x 1.6mm) package, providing a compact solution for space-constrained applications.

Applications

The PI3USB221XAEX is designed for use in a wide array of applications that require the switching of USB 2.0 signals. These include, but are not limited to:

• Mobile Phones and Smart Devices
• Tablets and Portable Media Players
• Notebook and Desktop Computers
• Docking Stations and Port Replicators
• USB Peripherals and Accessories

Quality and Reliability

Diodes Incorporated is committed to providing high-quality and reliable semiconductor products. The PI3USB221XAEX is manufactured with this commitment in mind, ensuring that it meets the stringent requirements of modern electronic devices and systems.
