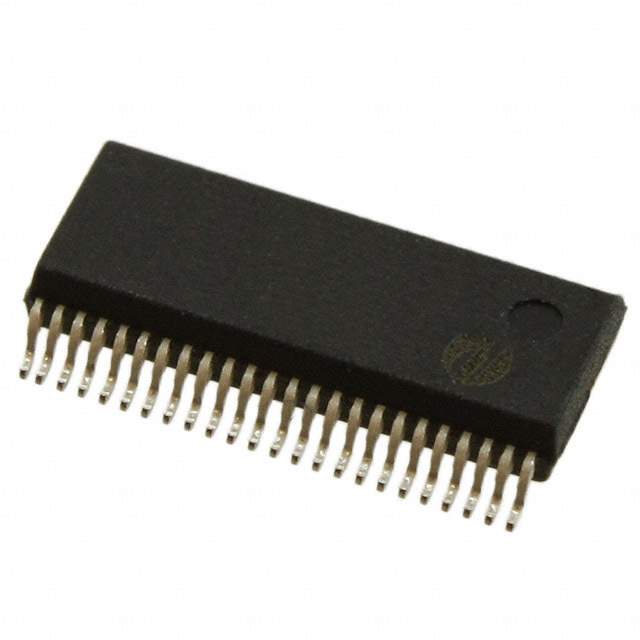

The PI5C16861B is a high-speed CMOS 10-bit bus switch designed by Diodes Incorporated, a leading manufacturer and supplier of high-quality semiconductor products. This bus switch is crafted to provide five pairs of switching channels with low on-state resistance, facilitating the connection or isolation of two ports without significant signal distortion or attenuation.

Key Features

• Low On-Resistance: The switch features a low on-state resistance of typically 5 ohms, providing efficient signal switching with minimal insertion loss.
• 5V Tolerant: It is designed to be 5V tolerant when powered off, which ensures compatibility with mixed-voltage environments and provides design flexibility.
• Quick Switching Speed: With a fast switch speed, it minimizes propagation delay, making it suitable for high-performance applications.
• Low Power Consumption: The PI5C16861B operates with very low quiescent power dissipation, thereby conserving energy and reducing thermal output in sensitive systems.
• Wide Operating Temperature Range: It is functional over an extensive temperature range, making it reliable for use in various industrial and commercial environments.

Applications

This bus switch finds its applications in a variety of settings, including but not limited to:

• High-speed data transmission paths
• Signal gating
• Bus isolation
• Peripheral sharing
• Server and networking equipment

Quality and Reliability

Diodes Incorporated is committed to delivering products of the highest quality. The PI5C16861B has undergone rigorous testing to ensure its performance and reliability. It is also backed by Diodes Incorporated's support and expertise, making it a trustworthy choice for designers and engineers seeking a high-performance bus switch solution.

For detailed specifications, application notes, and additional resources, customers are encouraged to visit the official Diodes Incorporated website or contact their support team for personalized assistance.
