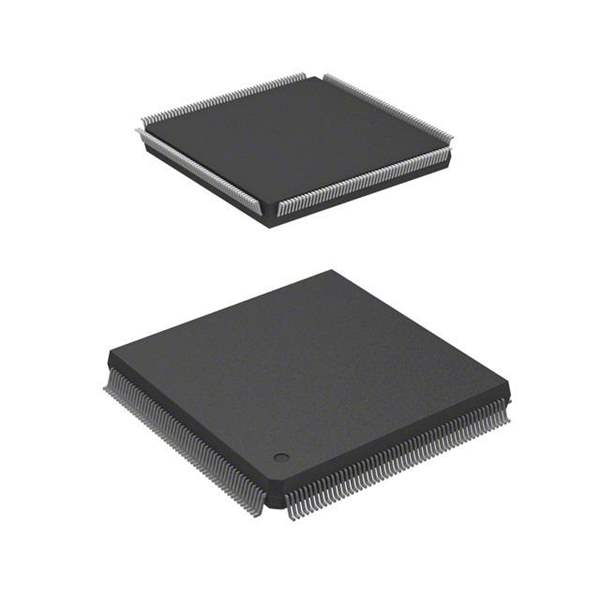

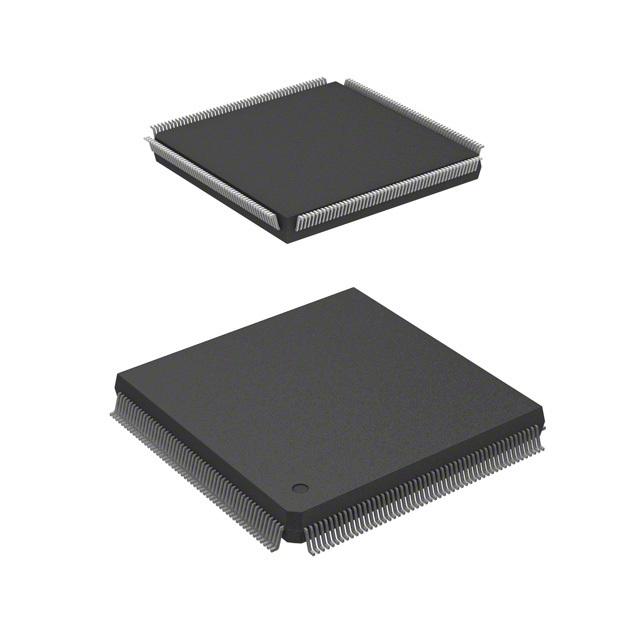

Diodes Incorporated PI7C8150BMAIE - PCI-to-PCI Bridge

The PI7C8150BMAIE is a versatile PCI-to-PCI bridge chip designed by Diodes Incorporated to offer a reliable solution for expanding the PCI bus from a single host. This chip is particularly useful in systems where additional PCI slots are required, enabling multiple devices to be connected to a single PCI bus interface.

Key Features

• Dual PCI Bus Interface: The device features two independent PCI bus interfaces, which operate at 66MHz and are compliant with PCI Local Bus Specification Revision 2.2.
• High Performance: With support for 32-bit data paths and a 66MHz clock, the PI7C8150BMAIE provides high bandwidth and performance for connected PCI devices.
• Low Power Consumption: Designed with power efficiency in mind, this bridge chip consumes minimal power, making it ideal for power-sensitive applications.
• Advanced Configuration: The chip includes programmable configuration registers for each bridge, allowing for extensive customization and optimization for specific use cases.
• Voltage Operation: The PI7C8150BMAIE operates at 3.3V, which is typical for PCI devices, ensuring compatibility with a wide range of hardware.
• Package: Available in a 208-pin PQFP (Plastic Quad Flat Pack) package, it is suitable for surface-mount technology and fits compactly on motherboards and expansion cards.

Applications

The PI7C8150BMAIE is an ideal choice for a variety of applications that require additional PCI slots or need to bridge between different PCI buses. It is commonly used in:

• Embedded systems
• Networking equipment such as routers and switches
• Server and workstation expansion slots
• Industrial control systems
• Telecommunications infrastructure

With its robust feature set and Diodes Incorporated's commitment to quality, the PI7C8150BMAIE is a reliable component for system designers looking to expand their PCI capabilities. Its advanced bridging features ensure seamless communication between multiple PCI devices, enhancing system performance and scalability.
