PI7C9X112SLFDE - PCIe to PCI Bridge from Diodes Incorporated

The PI7C9X112SLFDE is a high-performance, single-lane PCI Express to PCI bridge chip designed by Diodes Incorporated. This advanced semiconductor solution is engineered to provide a seamless interface between the latest PCI Express buses and legacy PCI devices, ensuring compatibility and extending the life of existing PCI hardware.

With its ability to act as a standard PCI-to-PCI bridge, the PI7C9X112SLFDE enables users to connect PCI Express hosts to PCI expansion devices. This makes it an ideal choice for a wide range of applications, including industrial control, embedded systems, and servers, where maintaining support for PCI devices is crucial.

Key features of the PI7C9X112SLFDE include:

• Compliance with PCI Express Base Specification, Revision 2.1, ensuring compatibility with the latest PCI Express systems.
• Support for a 32-bit, 33/66MHz PCI interface, which allows for a direct connection to PCI peripherals.
• Low power consumption, making it suitable for power-sensitive applications.
• Advanced error reporting and handling capabilities, which enhance system reliability and simplify troubleshooting.
• Support for both forward and reverse bridging, providing flexibility in system design and integration.

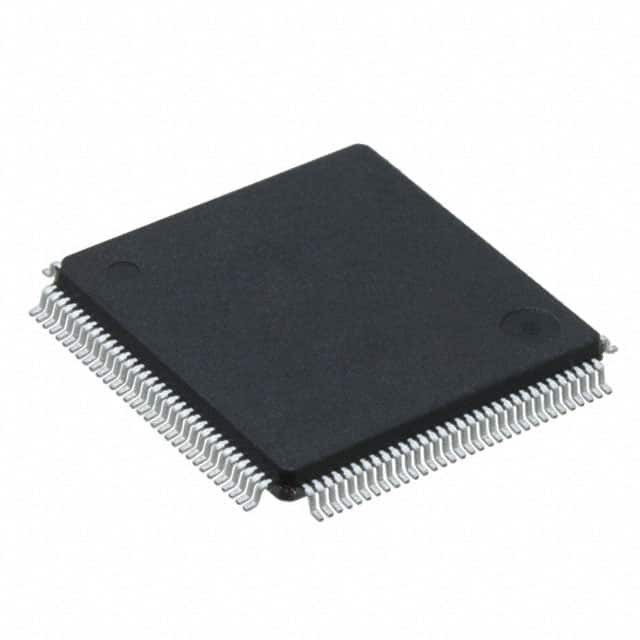

The PI7C9X112SLFDE is packaged in a lead-free, 128-pin LQFP (Low-profile Quad Flat Package), which minimizes the footprint on the PCB and is suitable for environmentally sensitive applications that require RoHS compliance.

Diodes Incorporated's commitment to quality and reliability is evident in the PI7C9X112SLFDE, with rigorous testing and validation ensuring that the product meets the highest standards for performance and durability. Whether upgrading an existing system or designing a new one, the PI7C9X112SLFDE bridge chip is an excellent choice for bridging PCI Express and PCI interfaces efficiently and effectively.
