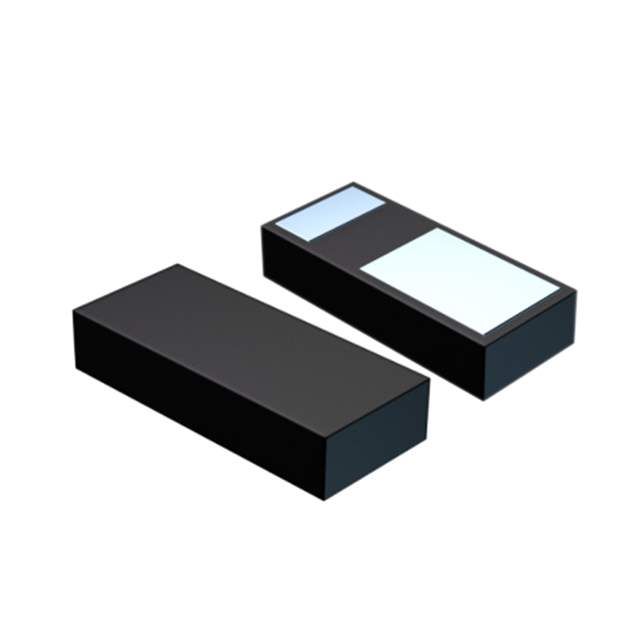

Introducing the SBR05U40CSP-7 from Diodes Incorporated

The SBR05U40CSP-7 is a state-of-the-art Super Barrier Rectifier (SBR) designed by Diodes Incorporated, a leading manufacturer and supplier of high-quality semiconductor products. This rectifier is engineered to provide efficient power conversion with its low forward voltage drop and high surge current capability, making it an ideal choice for a variety of electronic applications.

Key Features

• Low Power Loss: With its super barrier design, the SBR05U40CSP-7 offers a lower forward voltage drop compared to conventional Schottky rectifiers. This results in reduced power loss and improved efficiency in power management applications.
• High Surge Capability: This rectifier is capable of withstanding high surge currents, ensuring reliability and robustness in applications where surge events are common.
• Low Thermal Resistance: The SBR05U40CSP-7 is packaged in a PowerDI® 123 package, which offers low thermal resistance, enhancing the overall thermal performance and longevity of the device.
• Lead-Free and RoHS Compliant: In alignment with environmental standards, this product is lead-free and compliant with RoHS regulations, minimizing the environmental impact and catering to eco-conscious applications.

Applications

The SBR05U40CSP-7 is versatile and can be used in various applications, including:

• DC/DC converters
• Power supply units
• LED lighting
• Battery charging circuits
• Reverse polarity protection
• Automotive applications

Technical Specifications

Some of the technical specifications of the SBR05U40CSP-7 include:

• 40V Reverse Voltage
• 0.5A Forward Continuous Current
• High-Temperature Operation

With its advanced SBR technology, the SBR05U40CSP-7 offers enhanced performance characteristics over traditional rectifiers, making it a superior choice for modern electronic designs. Diodes Incorporated's commitment to quality and innovation is evident in this product, ensuring that designers and engineers have access to the best components for their power management solutions.
