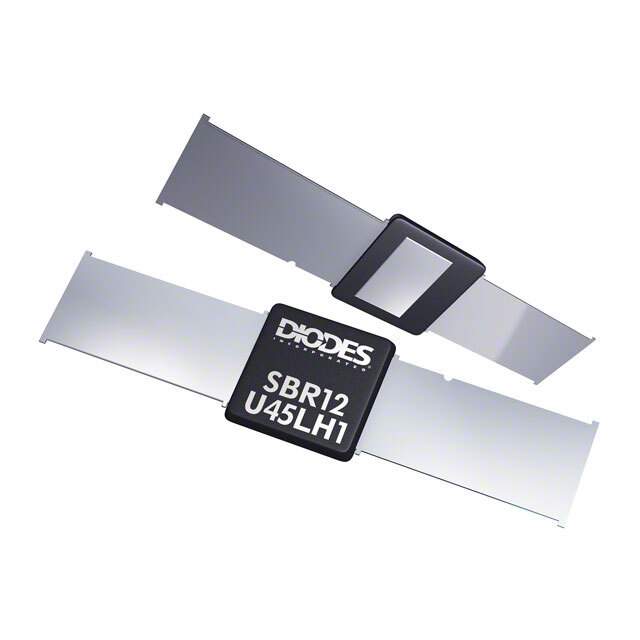

The SBR12U45LH1-13 from Diodes Incorporated is a state-of-the-art Super Barrier Rectifier (SBR) designed for high-performance applications that demand efficiency, reliability, and compactness. This rectifier is a perfect choice for a range of electronic devices, particularly in power management solutions where low forward voltage drop and high surge current capability are essential.

Key Features

• Low Forward Voltage Drop: The SBR12U45LH1-13 boasts an exceptionally low forward voltage drop, which enhances overall system efficiency by reducing power loss during conduction.
• High Surge Capability: With its robust design, this rectifier can withstand high surge currents, ensuring protection against unexpected voltage spikes and enhancing the durability of the end application.
• PowerDI®5 Package: The device is encapsulated in Diodes Incorporated's proprietary PowerDI®5 package, which is known for its low profile and small footprint, making it ideal for space-constrained applications.
• Lead-Free and RoHS Compliant: In alignment with environmental standards, the SBR12U45LH1-13 is lead-free and RoHS compliant, minimizing the ecological footprint of the products it is used in.
• Operating Junction Temperature: It operates effectively over a wide junction temperature range, ensuring reliability across various operating conditions.

Applications

The versatility of the SBR12U45LH1-13 makes it suitable for a wide array of applications, including:

• DC/DC converters
• AC/DC power supplies
• LED lighting
• Free-wheeling diodes in power converters
• Reverse battery protection
• Load switch applications

Specifications

Overall, the SBR12U45LH1-13 from Diodes Incorporated is a high-quality component that enhances the performance and longevity of electronic systems, making it a top choice for engineers and designers in various industries.
