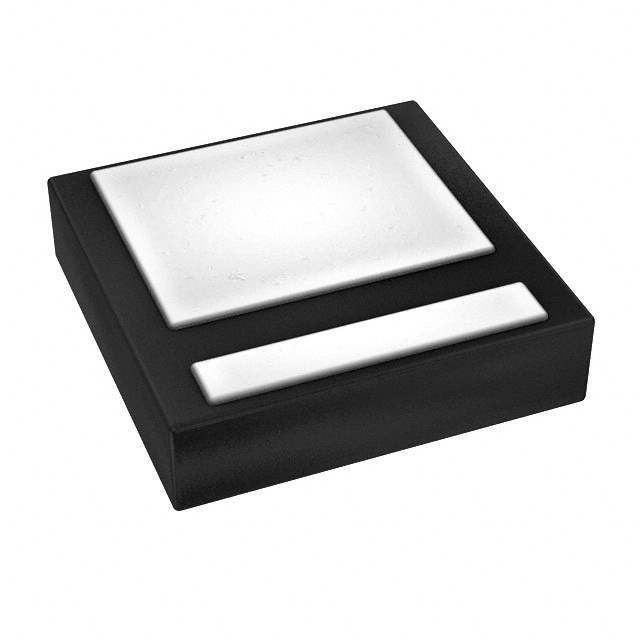

Same model may have multiple batches, images only for reference.
SBRT4U30LP-7Diodes Incorporated
Same model may have multiple batches, images only for reference.

SBRT4U30LP-7

Part No SBRT4U30LP-7
Manufacturer Diodes Incorporated
Catalog Diodes, Rectifiers - Single
Description DIODE SBR 30V 4A U-DFN2020-2
Datasheet
SBRT4U30LP-7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Discrete Semiconductor Products >Diodes Rectifiers Single Diodes
Part Status Active
Technology Super Barrier
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Max) @ If 500 mV @ 4 A
Current - Reverse Leakage @ Vr 100 µA @ 30 V
Supplier Device Package U-DFN2020-2
Operating Temperature - Junction -55°C ~ 150°C
Win Source Part Number WS1310240-SBRT4U30LP-7
Ultra Librarian 3D Model Ultra Librarian SBRT4U30LP-7 CAD Model

Description

The DIODES™ SBRT4U30LP provides very low VF and excellent reverse leakage stability at high temperatures. It is ideal for use as bypass diode and rectifier, freewheel diode or blocking diode in applications such as:

● Solar panels
●  Blocking diodes
●  Bypass diodes
●  Boost diodes
●  Recirculating diodes
