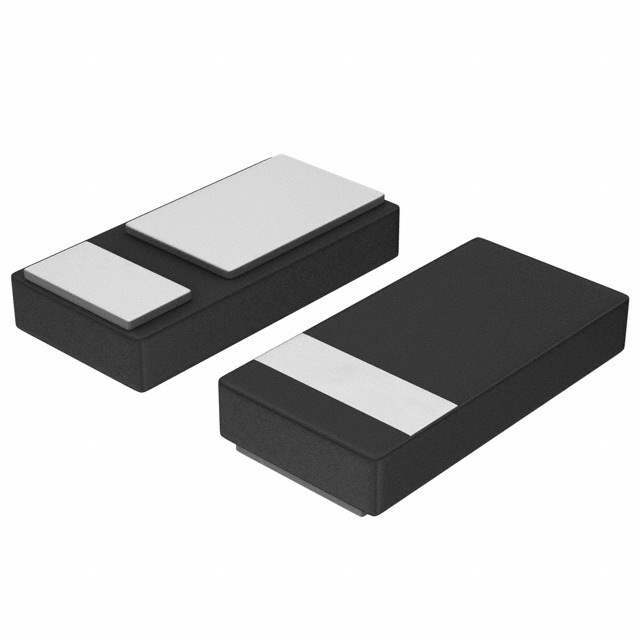

Same model may have multiple batches, images only for reference.
SDM4A40EP3-7B Diodes Incorporated
Same model may have multiple batches, images only for reference.

SDM4A40EP3-7B

Part No SDM4A40EP3-7B
Manufacturer Diodes Incorporated
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTT 40V 4A X3-TSN1608-2
Datasheet
SDM4A40EP3-7B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Discrete Semiconductor Products Diodes Rectifiers Single Diodes
Part Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Max) @ If 610 mV @ 4 A
Current - Reverse Leakage @ Vr 150 µA @ 40 V
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 150 µA @ 40 V
Capacitance @ Vr, F 88pF @ 4V, 1MHz
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Operating Temperature - Junction -55°C ~ 150°C
Win Source Part Number WS1309575-SDM4A40EP3-7B
Ultra Librarian 3D Model Ultra Librarian SDM4A40EP3-7B CAD Model

Description

The SDM4A40EP3 is a 40V 4A Schottky Barrier Rectifier that is optimized for low forward voltage drop and low leakage current, housed in a small surface mount package that occupies only 1.28mm2 board space with very low profile. The low thermal resistance enables designers to meet design challenges of increasing efficiency while at the same time reducing board space. It is ideally suited for use in portable applications such as:

• Blocking Diodes
• Boost Diodes
• Switching Diodes
• Reverse Protection Diodes
