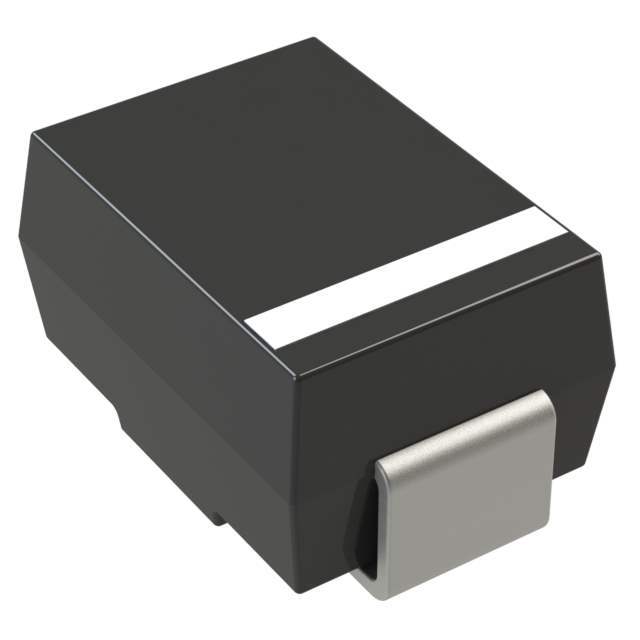

SDT3A45SA-13Diodes Incorporated
Same model may have multiple batches, images only for reference.

SDT3A45SA-13

Part No SDT3A45SA-13
Manufacturer Diodes Incorporated
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTKY 45V 3A SMA T&R 10K
Datasheet
SDT3A45SA-13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Discrete Semiconductor Products Diodes Rectifiers Single Diodes
Part Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Voltage - Forward (Vf) (Max) @ If 480 mV @ 3 A
Current - Reverse Leakage @ Vr 280 µA @ 45 V
Package / Case DO-214AC, SMA
Mounting Type Surface Mount
Supplier Device Package SMA
Operating Temperature - Junction -65°C ~ 150°C
Current - Average Rectified (Io) 3A
Win Source Part Number WS1309789-SDT3A45SA-13
Ultra Librarian 3D Model Ultra Librarian SDT3A45SA-13 CAD Model

Description

Diode 45 V 3A Surface Mount SMA
