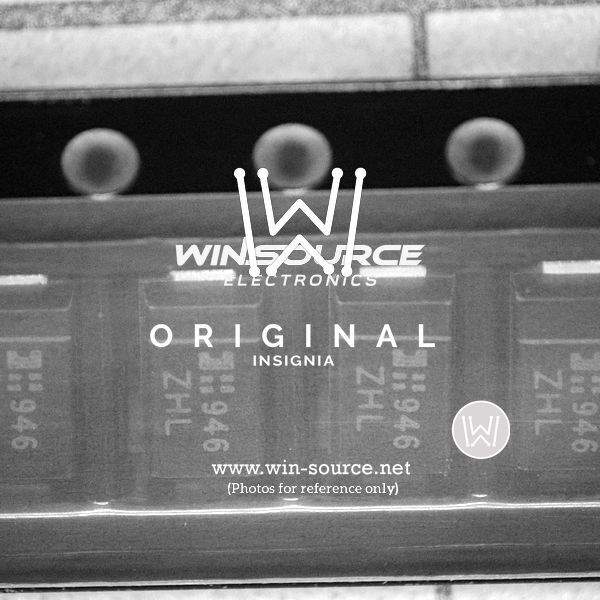

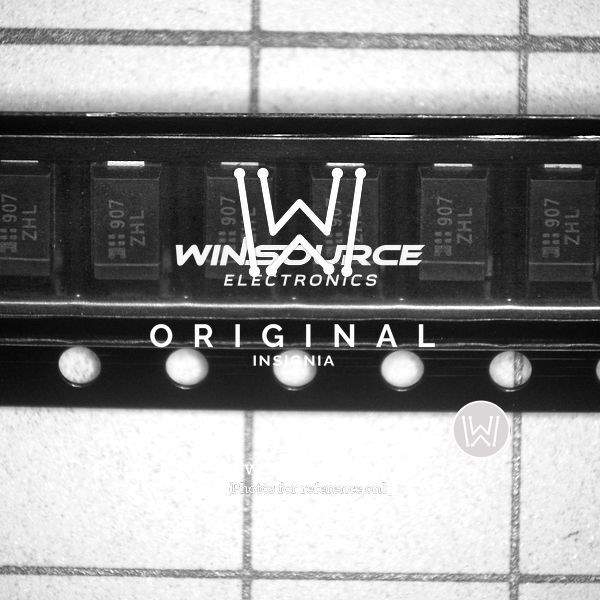

Overview of SMAZ5V6-13-F by Diodes Incorporated

The SMAZ5V6-13-F is a high-quality, robust Zener diode designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This Zener diode is engineered to provide precise voltage regulation and is commonly used in a variety of electronic applications such as voltage stabilization and clipping circuits.

Key Features

• Zener Voltage: The SMAZ5V6-13-F offers a nominal Zener voltage of 5.6V, making it suitable for applications requiring this specific regulation level.
• Power Dissipation: With a power dissipation of 1W, this Zener diode can handle a substantial amount of power, ensuring reliable performance in demanding situations.
• Package: The device comes in a DO-214AC (SMA) surface-mount package, which is known for its compact size and ease of integration into various circuit designs.
• High Surge Capability: This diode is capable of withstanding high surge currents, providing excellent transient voltage suppression and enhancing circuit protection.
• Temperature Stability: It offers excellent stability over a broad temperature range, maintaining consistent performance even under varying environmental conditions.

Applications

The SMAZ5V6-13-F is versatile and can be used across a wide range of applications. Its ability to provide a stable reference voltage makes it ideal for power supply circuits, while its surge protection features are beneficial for sensitive electronics. It is also suitable for use in automotive electronics, consumer electronics, and industrial systems where voltage regulation is critical.

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the SMAZ5V6-13-F is no exception. It is produced with high manufacturing standards, ensuring that each diode meets the company's stringent specifications for performance and reliability. This commitment to quality makes the SMAZ5V6-13-F a preferred choice for engineers and designers looking for a dependable Zener diode solution.

Environmental Compliance

In addition to its technical capabilities, the SMAZ5V6-13-F is also environmentally friendly. It complies with RoHS directives, which means it is free from hazardous substances such as lead, mercury, and cadmium. This compliance underscores Diodes Incorporated's dedication to environmental responsibility and the production of sustainable products.
