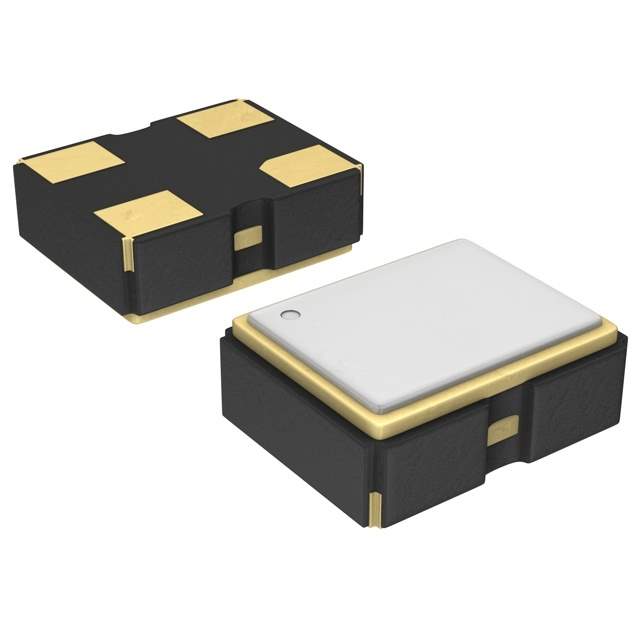

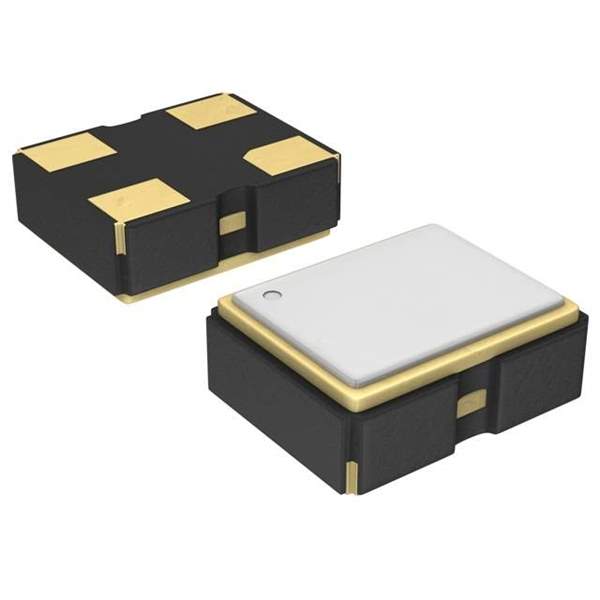

SXF550007

Part No SXF550007
Manufacturer Diodes Incorporated
Catalog Oscillators
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Diodes Incorporated
Series SaRonix-eCera™ SX
Package Bulk
Base Resonator Crystal
Type XO (Standard)
Frequency 155.52 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 30mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.071" (1.80mm)
Current - Supply (Disable) (Max) 10µA
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1284926-SXF550007
Ultra Librarian 3D Model Ultra Librarian SXF550007 CAD Model

Description

Introducing Product SXF550007 from Diodes Incorporated

Diodes Incorporated proudly presents the SXF550007, a state-of-the-art semiconductor component designed to meet the rigorous demands of modern electronic applications. This product exemplifies the company's commitment to providing high-quality, reliable, and efficient solutions for a wide range of industrial, commercial, and consumer devices.

Key Features

  • High Performance: The SXF550007 is engineered to deliver exceptional performance under a variety of conditions, ensuring stable operation and longevity.
  • Energy Efficiency: With its focus on energy conservation, this product is ideal for applications where power consumption is a critical factor, helping to reduce the overall energy footprint of the devices it powers.
  • Compact Design: The compact form factor of the SXF550007 allows for easy integration into space-constrained designs, providing flexibility for engineers and designers.
  • Durability: Constructed with robust materials, the SXF550007 is built to withstand harsh environments and provide consistent performance over its lifespan.
  • Versatility: This component is suitable for a multitude of applications, ranging from consumer electronics to industrial automation systems, offering a versatile solution for various circuit designs.

Applications

The SXF550007 is versatile enough to be used in a diverse array of applications, including but not limited to:

  • Power management systems
  • Automotive electronics
  • Portable devices
  • Telecommunication infrastructure
  • Medical equipment

Quality Assurance

Diodes Incorporated ensures that the SXF550007, like all its products, undergoes rigorous testing and quality control measures. This guarantees that each component meets the highest standards of quality and reliability that customers have come to expect from the brand.

About Diodes Incorporated

Diodes Incorporated is a leading manufacturer in the semiconductor market, known for its comprehensive range of products that cater to a vast spectrum of electronic applications. The company's dedication to innovation, quality, and customer service has cemented its position as a trusted name in the industry.

For more information on the SXF550007 or to view detailed specifications, please visit the Diodes Incorporated website or contact their customer support team.
