Product Overview: US1B-13-F - Diodes Incorporated

The US1B-13-F is a high-efficiency, surface-mount rectifier diode designed and manufactured by Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, and analog semiconductor markets. This product is a stellar choice for designers who require a compact, high-performance diode for their electronic applications.

Key Features

• Reverse Voltage: It offers a reverse voltage of 100V, providing a good margin for overvoltage protection in various applications.
• Forward Current: The rectifier has a forward current rating of 1A, making it suitable for medium power requirements.
• Power Dissipation: With a power dissipation of 1.25W, the US1B-13-F can handle significant energy without overheating, ensuring reliability and longevity in operation.
• High Efficiency: The device is designed for high efficiency with low forward voltage drop and fast switching speed, which minimizes energy loss and improves overall performance.

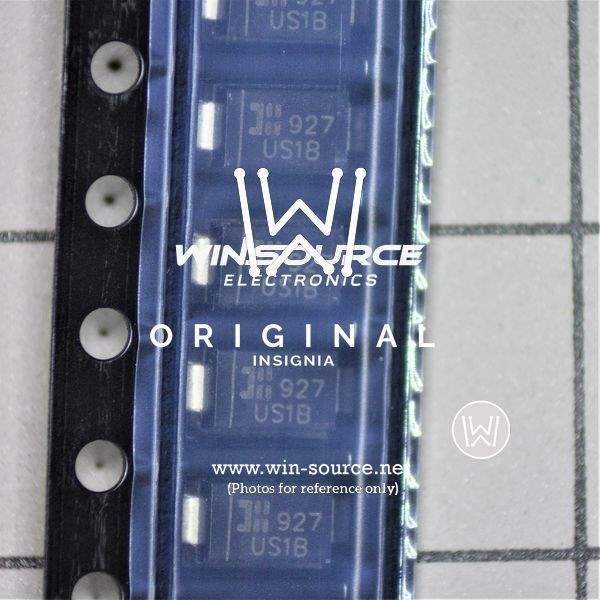

• Surface Mount Package: The US1B-13-F comes in an SMB package, which is ideal for automated assembly processes and helps save space on printed circuit boards.
• RoHS Compliant: It is compliant with the RoHS directive, which restricts the use of certain hazardous substances in electronic equipment, making it an environmentally friendly choice.

Applications

The US1B-13-F is versatile and can be used in a variety of electronic circuits. It is commonly found in:

• Power supply units
• DC-DC converters
• Automotive systems
• Consumer electronics
• Telecommunications equipment

Quality and Reliability

Diodes Incorporated is committed to providing products that meet the highest standards of quality and reliability. The US1B-13-F is subjected to rigorous testing and quality control procedures, ensuring that it performs to the specifications under various conditions and throughout its lifespan.
